NXP Semiconductors P3S0200GM I3C Switch with Hardware Select & Enable

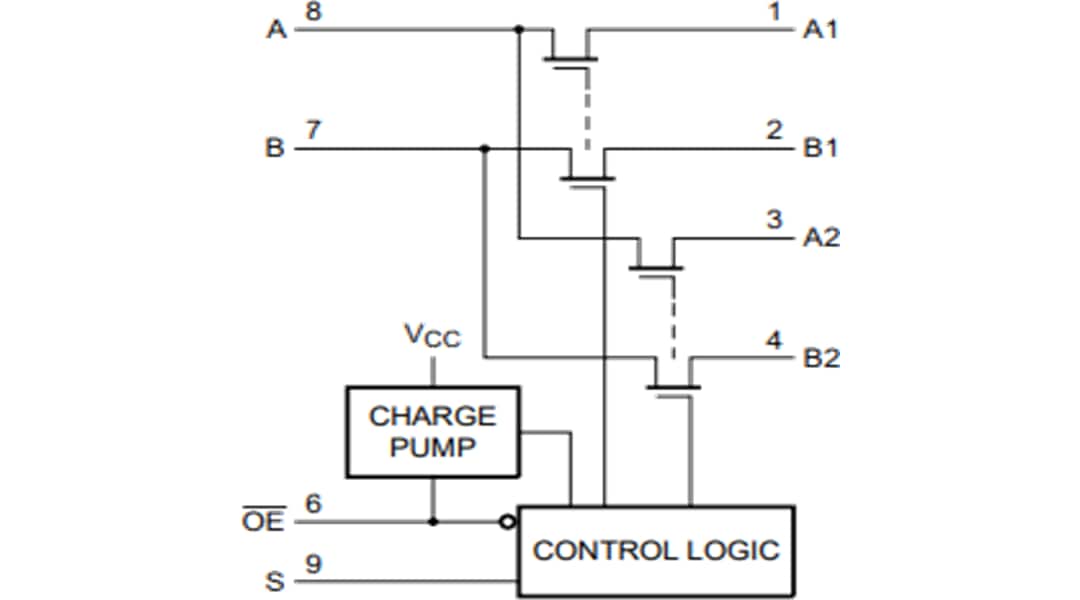

NXP Semiconductors P3S0200GM I3C Switch is optimized for switching high-speed I3C signals in communication and server applications, such as servers, workstations, and notebooks that have limited I3C I/Os. The wide 52MHz bandwidth of the P3S0200GM allows the signal to pass with minimum edge and phase distortion. The device multiplexes differential outputs from the I3C controller to one of two corresponding targets with a hardware select pin. The P3S0200GM Switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs.
