NXP Semiconductors MPC5775x-EVB Development Boards

NXP Semiconductors MPC5775x-EVB Development Boards feature MPC5775B or MPC5775E MCU, silicon components, and interfaces for application development. These development boards include low-cost development boards engineered for battery management and inverter applications. The MPC5775x-EVB development boards include silicon components and interfaces for efficient application development in the automotive electrification space. These development boards are highly-integrated development boards that help in speed development.

The MPC5775x-EVB development boards are based on a 32-bit power Architecture^® and MC3377x battery cell controller. These boards operate at -40°C to 125°C temperature range and 4.5V to 5.5V voltage range. Typical applications include battery management system, diesel engine management, motor drives, motor Engine Control Unit (ECU), and small engine control.

Features

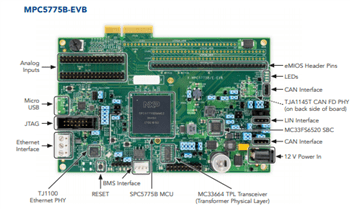

MPC5775B-EVB:
- SPC5775B microcontroller
- MC33664 high-speed transceiver with MC3377x battery cell controller

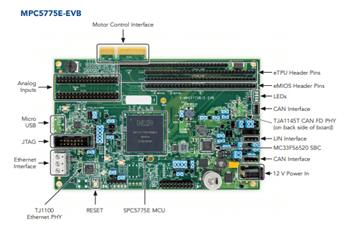

MPC5775E-EVB:
- SPC5775E microcontroller
- PCle X4-style edge connector
MC33FS6520LAE System Basis Chip (SBC) for the board power supply
eMIOS header pins

ADC header pins
Debug selectable between external debug connection
DSPI header pins
Debug selectable between external debug connection
TJA1145T/FD CAN physical interface
TJA1100 automotive Ethernet physical interface

Specifications

12V external DC power supply
4.5V to 5.5V operating voltage range
MPC5775B MCU

-40°C to 125°C operating temperature range
32-bit architecture e200z7 three dual-issue CPU cores

Applications

Battery management system
Diesel engine management

Motor drives
Motor ECU and small engine control
