NXP Semiconductors MCU-Link Debug Probe

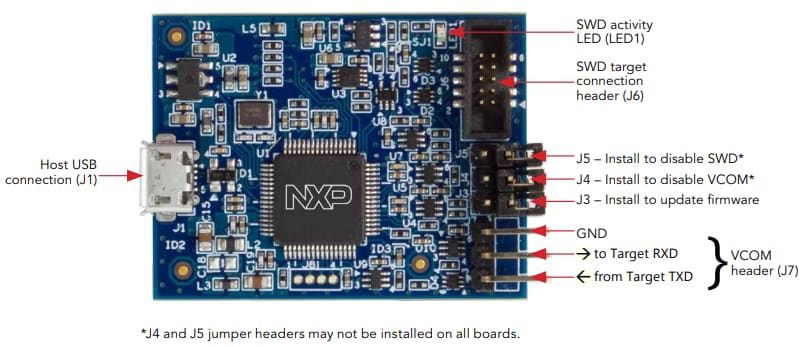

NXP Semiconductors MCU-Link Debug Probe is a powerful debug probe that can be used with MCUXpresso IDE. This debug probe is also compatible with third-party Integrated Development Environments (IDEs) that support the CMSIS-DAP protocol. The MCU-Link debug probe features a USB to UART bridge (VCOM) that provides a serial connection between the target MCU and a host computer. This debug probe is based on the LPC55S69 microcontroller and offers a high-speed USB interface for high-performance debug.

Features

LPC55S69 dual Arm^® Cortex^®-M33 microcontroller running at up to 150MHz
Target USB to UART bridge connectivity
SWD activity LED user interface
Simple firmware update via USB

SWD/JTAG debug interface to target via 10-pin CoreSight connector
SWO support for profiling, interrupt tracing, and low overhead data access

Kit Contents

MCU-Link debug probe
Target debug connector
VCOM connector cable
Spare jumpers
