NXP Semiconductors MCSXTE2BK142 Motor Control Development Board

NXP Semiconductors MCSXTE2BK142 Motor Control Development Board provides a hardware platform for motor control quick prototype verification. This development board drives and directly tunes multiple types of automotive motors. The MCSTE2BK142 development board is designed to deliver a motor control hardware solution to support 24V automotive systems which can be used for multiple applications. This development board is suitable for blowers, water pumps, oil pumps, and cooling fans.

Features

  • Supports speed/control commands from LIN/CAM/PWM
  • Supports a 24V power supply system with up to 800W automotive BLDC/PMSM motor control system
  • Supports multiple diagnose and protection covering UV, OV, OT, OC, short, and stall detection
  • Dual shunt and triple shunt current sample solution are implemented
  • Able to drive multiple types of automotive motors and tune those motors directly
  • Contains a PMSM FOC based on the NXP S32K142+GD3000+CAN PHY+LIN PHY

Applications

  • Blowers
  • Water pumps
  • Oil pumps
  • Cooling fans

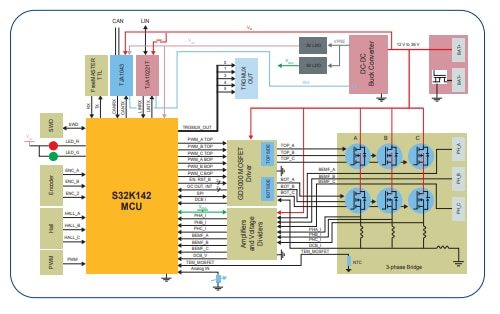

Block Diagram

Block Diagram - NXP Semiconductors MCSXTE2BK142 Motor Control Development Board
