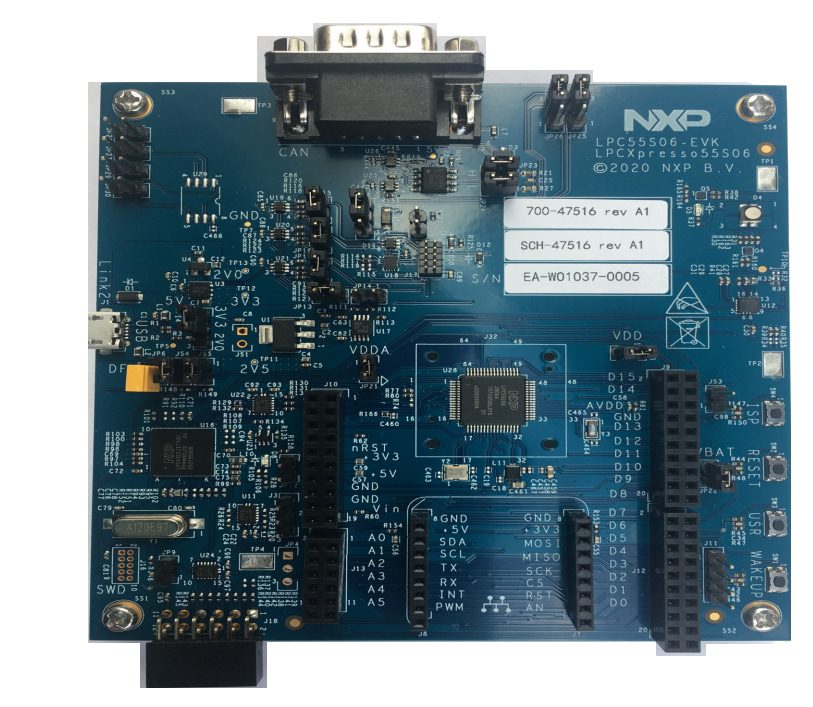

NXP Semiconductors LPCXpresso55S06 Development Board

NXP Semiconductors LPCXpresso55S06 Development Board delivers a powerful and flexible development system for the LPC55S0x/LPC550x families of MCUs. The LPC550x/S0x MCUs offer advanced security, making them ideal for industrial, IoT, and general embedded applications. The LPC550x/S0x Arm Cortex-M33 based microcontrollers feature a CASPER Crypto engine with up to 256KB on-chip flash and up to 96KB of on-chip SRAM.

The NXP Semiconductors LPCXpresso55S06 Development Board provides an onboard, high-speed USB, Link2 debug probe with CMSIS-DAP and SEGGER J-Link protocol options, along with an LPC55S06 Cortex-M33 processor.

Features

LPC55S06 Cortex-M33 processor
Onboard, high-speed USB, Link2 debug probe with CMSIS-DAP and SEGGER J-Link protocol options
UART and SPI port bridging from LPC55Sxx target to USB via the onboard debug probe
Optional external debug probes with trace option (10 or 20-pin Cortex-M connectors)
External crystal oscillators

RGB user LED
Reset, ISP, User/Wakeup and user buttons
Multiple Expansion options, including Arduino UNO, Mikroe Click and PMod
CAN-FD controller and onboard CAN transceiver
NXP MMA8652FCR1 accelerometer
