NXP Semiconductors LPC553x/S3x MCU Family

NXP Semiconductors LPC553x/S3x MCU Family expands the general-purpose Cortex-M33-based MCU series. It offers significant performance enhancement, all on-chip RAM with Parity or ECC, renewed security features, and precision analog additions. The family leverages the cost-effective 40nm NVM process technology. The LPC553x/S3x family includes a proprietary DSP accelerator offering 10x clock cycle reduction, bringing significant signal processing efficiency gains.

Features

An Arm® Cortex®-M33 MCU family
- High-efficient 40nm flash technology with 112kB Parity + 16kB ECC RAM
- Over 600 Core-Mark (4.17uA/MHz running in Flash with Cache) and active power as low as 57uA/MHz
- Enhanced safety and security with TrustZone-M
- System Integration with DSP acceleration –Cordic engine providing >3.5X improvement for Motor Control Applications
- High-precision and fast ADCs, instrumentation class OpAmp with programmable gain up to 64x, and DAC
- Motor Control PWM and Quad Encoder/Decoder
- Comprehensive enablement with MCUXpresso Ecosystem

Applications

Industrial and building automation
Motor control
Power inverters
Consumer products
Power tools

Appliances
Smart home
Secure/biometric access control
Security systems

NXP Semiconductors LPC553x/S3x MCU Family

Features

Applications

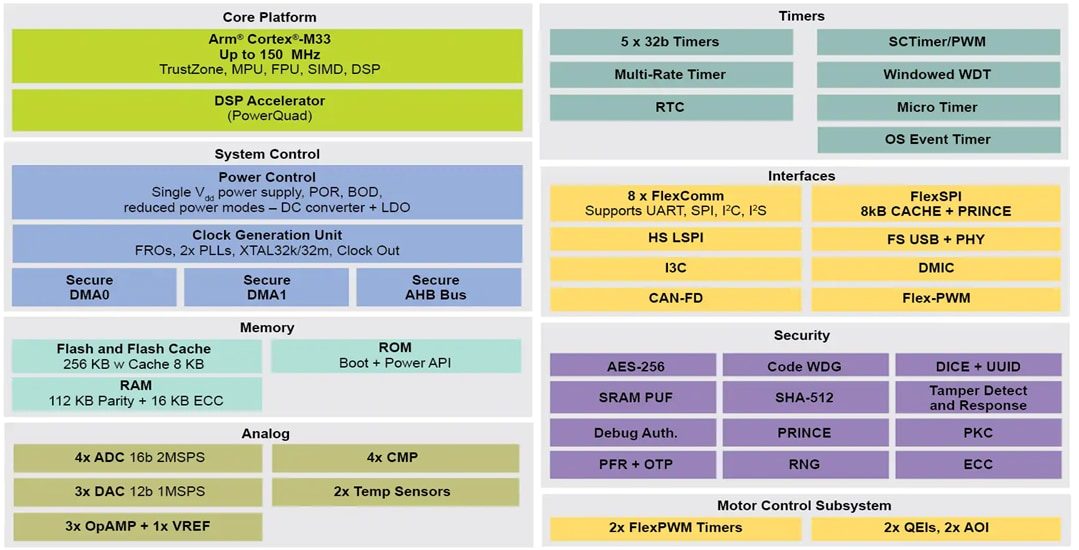

Block Diagram
