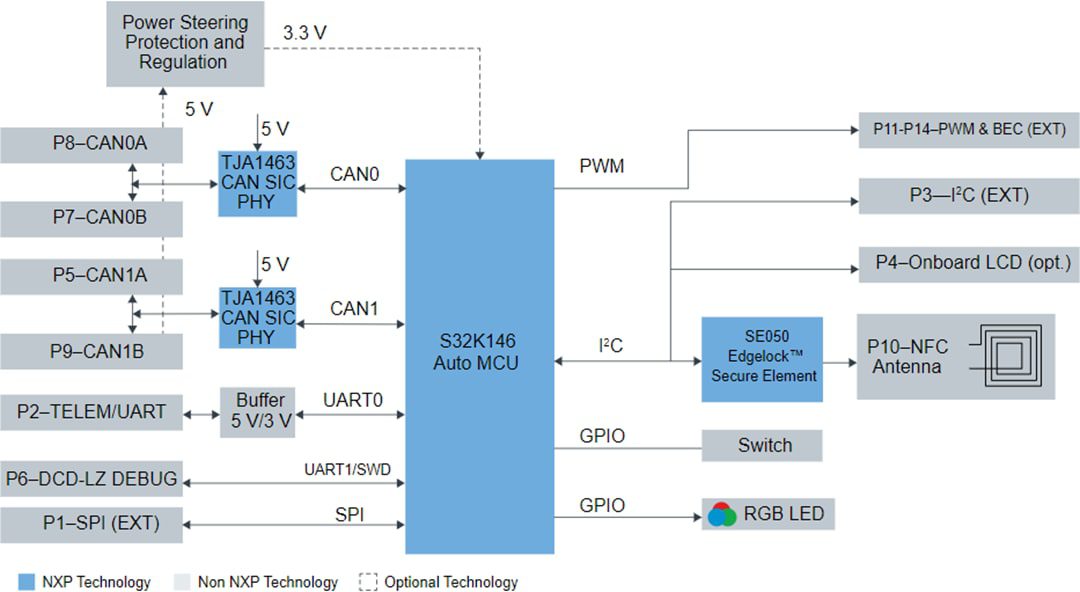

NXP Semiconductors KIT-UCANS32K1SIC CAN SIC Evaluation Kit is a Controller Area Network (CAN) Signal Improvement Capability (SIC) reference design based on the TJA1463 CAN SIC Transceiver. CAN SIC technology enables more complex networks and CAN FD communication up to 8Mbps by reducing the effects of signal ringing. The KIT-UCANS32K1SIC Evaluation Kit provides two CAN SIC interfaces and is controlled by a 32-bit Arm® Cortex®-M4 based S32K1 microcontroller. The KIT-UCANS32K1SIC also includes the EdgeLock® SE050 Secure Element for authentication and encryption development.

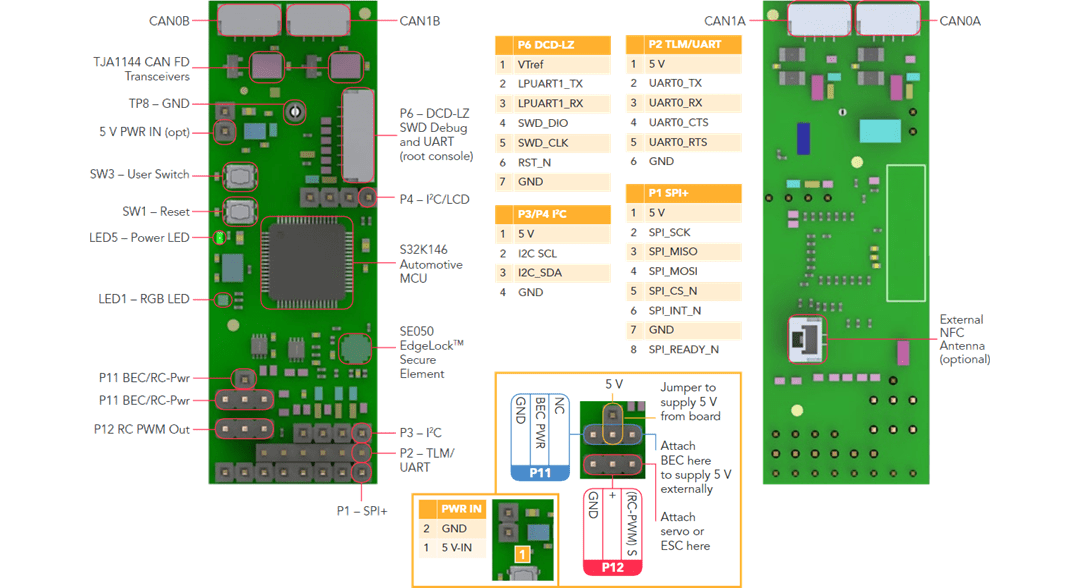

The NXP Semiconductors KIT-UCANS32K1SIC CAN SIC Evaluation Kit includes two UCANS32K1SIC Evaluation Boards, along with cables, USB-UART adapters, an NFC antenna, and a Segger J-Link Mini Debugger. The UCANS32K1SIC Evaluation Board can also be purchased separately.
S32 Design Studio for Arm
S32 Design Studio for Arm is a tool suite for developing applications for NXP automotive and ultra-reliable microcontrollers.
PX4 Autopilot
PX4 Autopilot is an open-source flight control software for drones and other unmanned vehicles. While UCANS32K146 is not a flight controller, it can leverage the PX4 infrastructure to provide communications and portability of peripheral drivers, leading to the enablement of a distributed vehicle architecture.
Apache NuttX
NuttX is a real-time operating system (RTOS) emphasizing standards compliance and a small footprint. Scalable from 8-bit to 32-bit microcontroller environments, the primary governing standards in NuttX are Posix and ANSI standards.
UAVCAN
UAVCAN is a lightweight protocol designed for reliable intravehicular communication in aerospace and robotic applications over CAN bus, Ethernet, and other robust transports.
