NXP Semiconductors K32W148-EVK Evaluation Kit

NXP Semiconductors K32W148-EVK Evaluation Kit allows users to evaluate the K32W148 MCUs. The K32W1480 includes a 2.4GHz radio supporting 15.4 and BLUETOOTH® LE. The K32W148-EVK board features an MCU-Link debug probe, buttons, switches, LEDs and integrated sensors, an Arduino shield connector, a MikroE Click connector, and other headers.

The NXP K32W148-EVK kit is a highly configurable, low-power, and cost-effective platform for the K32W148 low-power, highly secure, single-chip wireless MCU, supporting an Arm® Cortex-M33 core.

Features

Core
- K32W1480 with 96MHz Arm® Cortex®-M33 core
- Dedicated CM3 radio core
- EdgeLock Secure Enclave
Power management
- Supports All DC-DC configurations
Connectivity
- Arduino shield socket
- mikroBUS Socket

Wireless
- PCB Inverted F-type antenna and SMA RF connector
Debug
- JTAG
Sensor
- NXP FXLS8964AF 3D Accelerometer (±2g/±4g/±8g)

Kit Contents

K32W148-EVK board hardware assembly
A USB cable
Spare jumpers

NXP Semiconductors K32W148-EVK Evaluation Kit

Features

Kit Contents

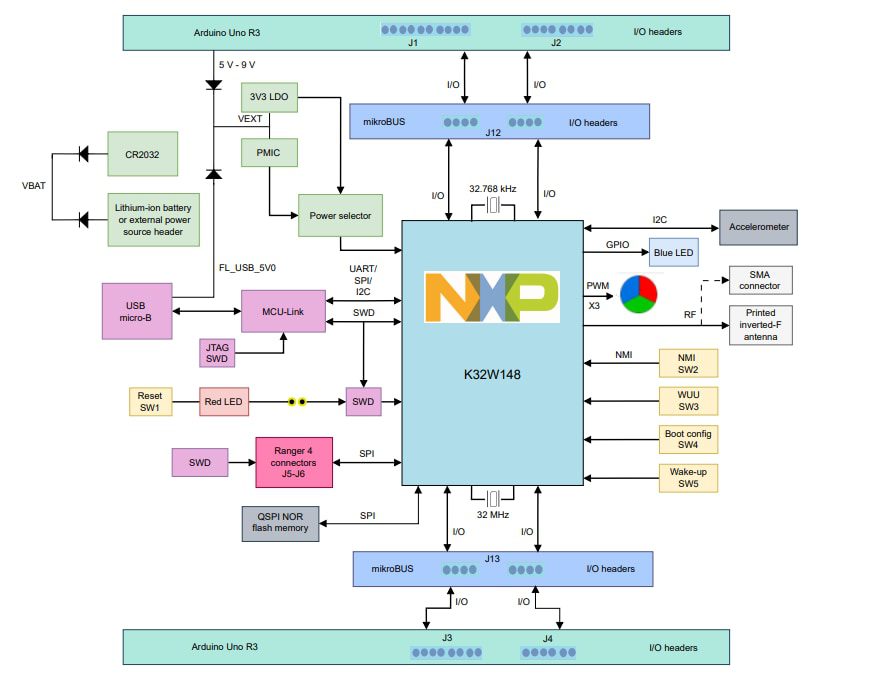

Block Diagram

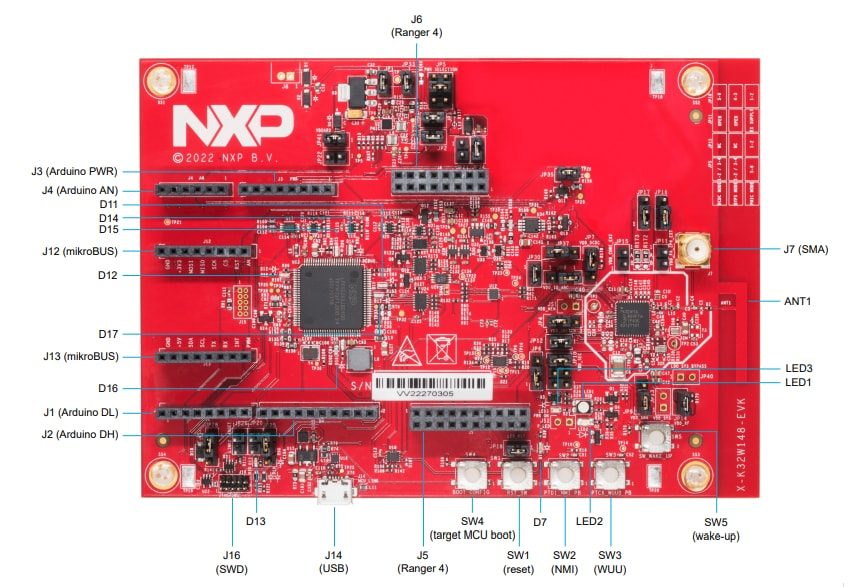

Hardware Overview
