NXP Semiconductors IOTZTB-DK006 Wireless Development Kit

NXP Semiconductors IOTZTB-DK006 Development Kit is a modular evaluation and prototyping platform for the K32W061/41 and JN5189/88 microcontrollers. The K32W061/41 and JN5189/88 are ultra-low-power, high-performance wireless MCUs suitable for BLUETOOTH® Low Energy (BLE), Zigbee, Thread, and other IEEE 802.15.4-based network applications such as home and building automation and smart lighting. The IOTZTB-DK006 Development Kit is composed of rich components, including a Control Bridge with an NFC Reader, Generic Switch Node, Light/Sensor Node, K32W Module Boards, JN5189 Module Boards, and a USB Dongle that allows for a small wireless network to be quickly assembled for multiprotocol applications.

Both the K32W USB dongle (OM15080-K32W), and the K32W upgrade board (K32W-001-T10) can also be purchased separately.

Features

Processor
- K32W061
  - Up to 48MHz Arm® Cortex®-M4
  - 640KB flash, up to 152KB RAM, 128KB ROM
  - NFC NTAG Option with EEPROM
  - Bluetooth LE and 2.4GHz IEEE 802.15.4 compliant
- JN5189(T)
  - Up to 48MHz Arm Cortex-M4
  - Up to 640KB flash, up to 152KB RAM, 128KB ROM
  - NFC NTAG Option with EEPROM
  - 2.4GHz IEEE 802.15.4 compliant
Connectivity
- Standard Arduino compatible header
- 2x DMIC
- FTDI USB connector
Power options
- External DC power supply
- Onboard batteries
- USB port

Debug
- High-speed, USB-based, Link2 debug probe with ARM’s CMSIS-DAP and SEGGER J-Link protocol options.
- Link2 probe can be used with on-board K32W061/JN5189 or external target
Wireless
- Bluetooth LE and IEEE 802.15.4 compatible PCB antenna
- NFC antenna
Sensors
- Temperature sensor
- Gyroscope
- Light sensor
- Accelerometer and magnetometer
Software and support application development
- MCUXpresso SDK with optional FreeRTOS support
- MCUXpresso IDE
- MCUXpresso Config Tools

Kit Contents

Generic Router with NFC Reader
Generic Switch Node
Light/Sensor Node
K32W USB Dongle (OM15080-K32W)

3x K32W Upgrade boards (K32W-001-T10)
3x JN5189 Upgrade boards
3x USB Cables

IoT Toolbox

The NXP Semiconductors IoT Toolbox app allows end-users to improve their out-of-the-box experience, providing a user-friendly way to test the Bluetooth LE, Zigbee, and Thread demo applications developed for NXP chipsets.

Download IoT Toolbox (iOS) from the App Store
Download IoT Toolbox (Android) from Google Play

Documents

User Guide
Getting Started

NXP Semiconductors IOTZTB-DK006 Wireless Development Kit

Features

Kit Contents

IoT Toolbox

Documents

Videos

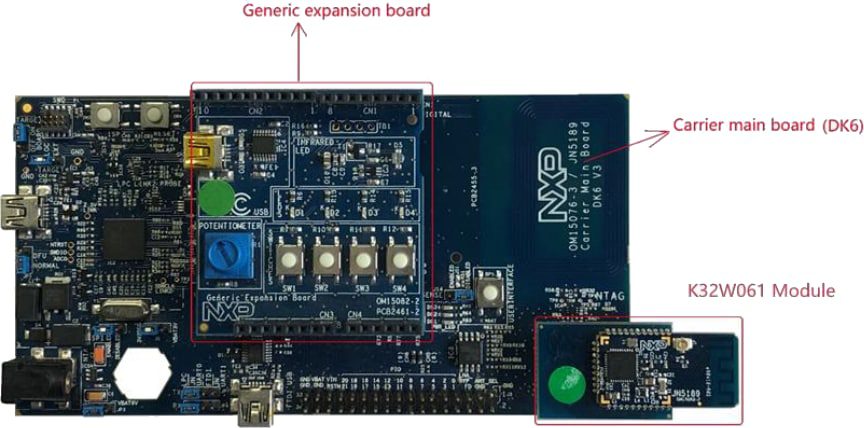

Board Overview
