NXP Semiconductors GoldBox 3 Vehicle Networking Development Platform

NXP Semiconductors GoldBox 3 Vehicle Networking Development Platform is designed for vehicle Service-Oriented Gateways (SoGs), domain control applications, high-performance processing, and safety and security applications. This development platform offers high-performance computing capacity, real-time network performance, multi-Gigabit packet acceleration, security, and rich input/output (I/O). These target the central gateway, domain controller, Firmware Over-The-Air (FOTA), secure key management, smart antenna, and high-performance central compute nodes. The GoldBox 3 vehicle networking development platform supports low-power mode, multiple wake-up sources, and two M.2 modules. Typical applications include Firmware Over-the-Air (FOTA), automotive access points, safety processors, service-oriented gateway, vehicle compute, and zonal gateways.

Features

Hardware:
- Supports service-oriented gateway and domain controller applications
- Multiple network interfaces featuring 18 CAN/CAN FD and 12 Ethernet ports
- Supports low-power mode and multiple wake-up sources
- Supports two M.2 modules (M-key slot and E-key slot)
12V AC-DC adapter power supply

LIN, CAN/CAN FD, 100BASE-T1, 1000BASE-T / 2.5GBASE-T, 100BASE-TX, 1000BASE-T, FlexRay, USB, PCIe, JTAG, UART, AURORA, and M.2 slots interfaces
ISO 26262 support by using safety components and architecture
S32G Vehicle Integration Platform (GoldVIP) provides a reference vehicle integration platform that accelerates S32G hardware evaluation, software development, and rapid prototyping efforts

Kit Contents

Rugged enclosure with integrated thermal management
S32G reference design board 3
Universal AC adapter
AC/DC 12V 6.67A power supply
32GB SD card
DuPont line
2x USB A-to-micro B cables (UART0/1)

CAT6A Ethernet cable
Ethernet loopback cable
3x Heatsinks
FAN solution for S32G
Screws (M.2 slots)
1.27mm mini jumpers and cables

Applications

Automotive access point
Automotive data logger
Automotive zone controller
Domain controllers
Firmware Over-the-Air (FOTA)
Gateway

In-vehicle networks
Safety processors
Service-oriented gateway
Vehicle compute
Zonal gateways

NXP Semiconductors GoldBox 3 Vehicle Networking Development Platform

Features

Kit Contents

Applications

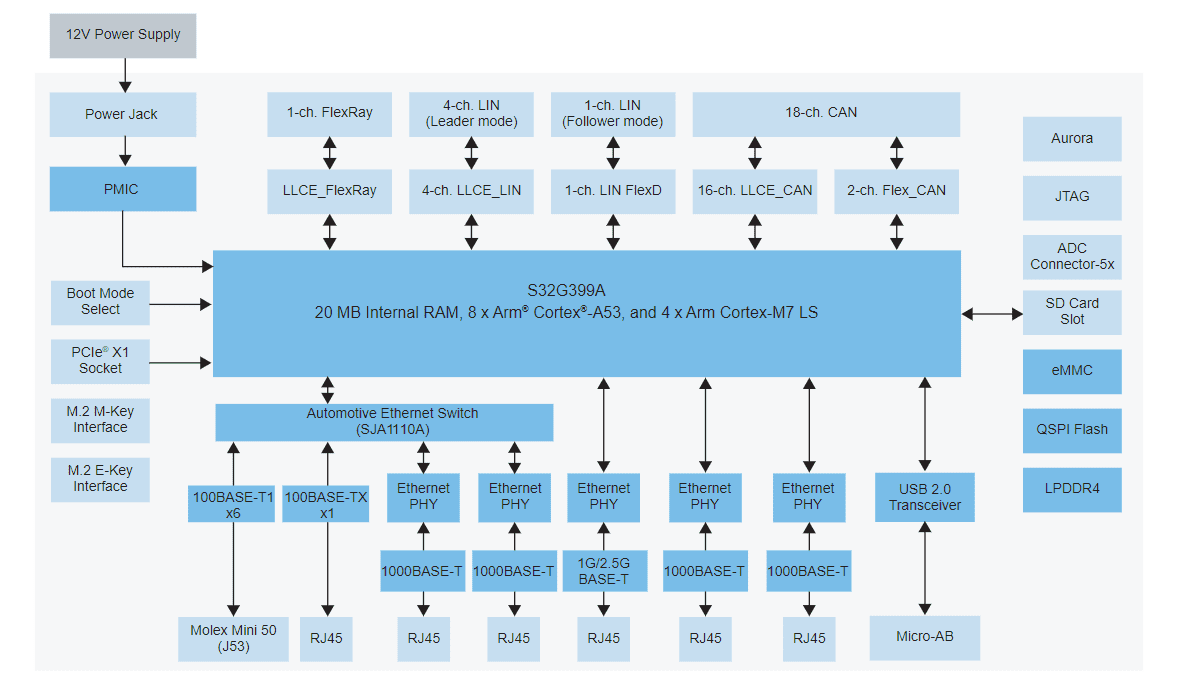

Block Diagram
