NXP Semiconductors FS23 SBC PMIC Evaluation Boards

NXP Semiconductors FS23 SBC PMIC Evaluation Boards enable the evaluation, design, implementation, and validation of FS23x fail-safe, body/comfort System Basis Chips (SBCs). The KITFS23LDOEVM and KITFS23SKTEVM boards are soldered boards supporting the FS2300 fail-safe SBCs. KITFS23LDOEVM offers three low dropout (LDO) regulators, while the KITFS23SKTEVM board provides three LDOs and an FS2320 fail-safe SBC with one SMPS and two LDOs. The KITFS23BUKEVM board is a soldered board supporting the FS2320 fail-safe SBCs with one SMPS and two LDO regulators. Devices can be placed and removed easily from the boards using a socket. KITFS23LDOEVM and KITFS23BUKEVM include a soldered FS2320 device with empty OTP content, allowing users to burn the OTP configuration.

Features

3.81mm male connector or jack connector for power supply input
3.81mm male connector for HVLDOs
3.81mm male connector for HVBUCK (KITFS23BUKEVM and KITFS23SKTEVM)
3.81mm male connector for CAN and LIN communication
3.81mm male connector for high-side drivers
Selectable Debug mode, Test mode, and Normal mode with switches and jumpers to power up the device in different modes
INTB, RSTB, FS0B, LIMP0, FCCU pins
Header connectors for I/O configuration

Embedded USB to I²C/SPI protocol for easy connection to the software GUI through the S32K144 MCU
Red and green LEDs to indicate signal or regulator status
Blue LED to indicate that OTP 8V burning voltage is set
Advanced system monitoring via S32K144 MCU
Required
- 1x power supply with a range of up to 40V
- System
  - USB-enabled computer with Windows 7 or Windows 10
  - FTDI USB serial port driver (for FT230x basic UART device)

Applications

Body control modules
HVAC
Lighting
Steering column locks
Seat modules
Roof modules

Door control modules
Car access
Gearshifts
Seat belt pre-tension
Tailgates
Alarms

Kit Contents

KITFS23LDOEVM
- Assembled and tested evaluation board with preprogrammed S32K144 microcontroller in an anti-static bag
- 3.0ft USB-STD A to USB-B-micro cable
- 6x connectors, terminal block plug, 2x positions, straight, 3.81mm
- 3x connectors, terminal block plug, 3x positions, straight, 3.81mm
- Jumpers mounted on board
KITFS23BUKEVM
- Assembled and tested evaluation board with preprogrammed S32K144 microcontroller in an anti-static bag
- 3.0ft USB-STD A to USB-B-micro cable
- 6x connectors, terminal block plug, 2x positions, straight, 3.81mm
- 6x connectors, terminal block plug, 3x positions, straight, 3.81mm
- Jumpers mounted on board

KITFS23SKTEVM
- Assembled and tested evaluation board with preprogrammed S32K144 microcontroller in an anti-static bag
- 3.0ft USB-STD A to USB-B-micro cable
- 4x connectors, terminal block plug, 2x positions, straight, 3.81mm
- 4x connectors, terminal block plug, 3x positions, straight, 3.81mm
- Jumpers mounted on board

NXP Semiconductors FS23 SBC PMIC Evaluation Boards

Features

Applications

Kit Contents

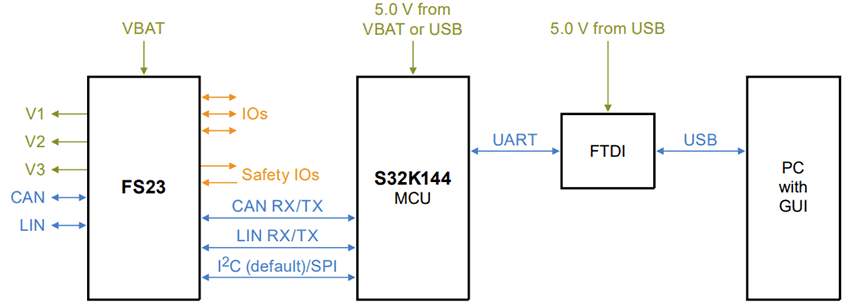

Communication Between FS23 and NXP GUI Overview
