NXP Semiconductors FRDMGD3160XM3EVM Half-Bridge Evaluation Kit

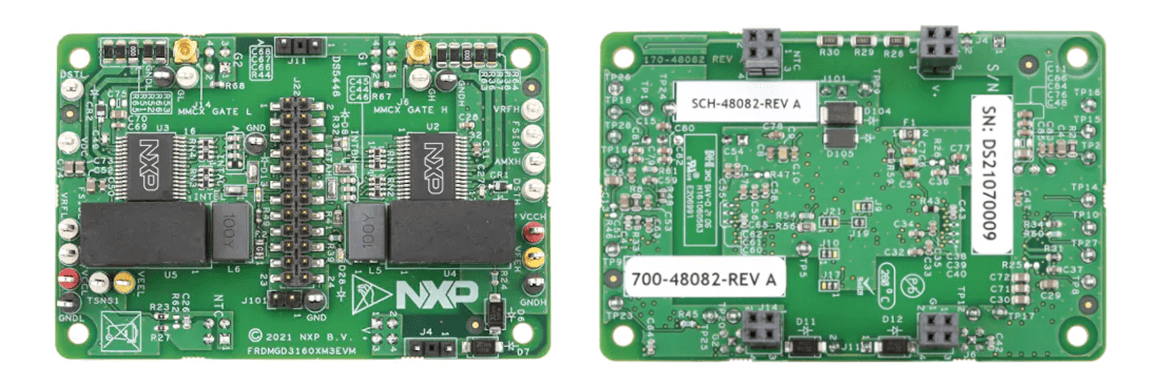

NXP Semiconductors FRDMGD3160XM3EVM Half-Bridge Evaluation Kit is populated with two MC33GD3160 single-channel IGBT/SiC MOSFET gate drive devices. The FRDMGD3160XM3EVM Kit provides the Freedom KL25Z microcontroller hardware for interfacing a PC installed with Flex GUI software for communication to the SPI registers on the MC33GD3160 gate drive devices in either daisy chain or standalone configuration. The KITGD3160TREVB translator board is intended to translate 3.3V signals to 5.0V signals between the MCU and MC33GD3160 gate drivers. The FRDMGD3160XM3EVM Evaluation Kit is designed to connect to a Wolfspeed XM3 SiC MOSFET module for half-bridge evaluations and applications development.
