NXP Semiconductors FRDMDUAL33664EVB Evaluation Board

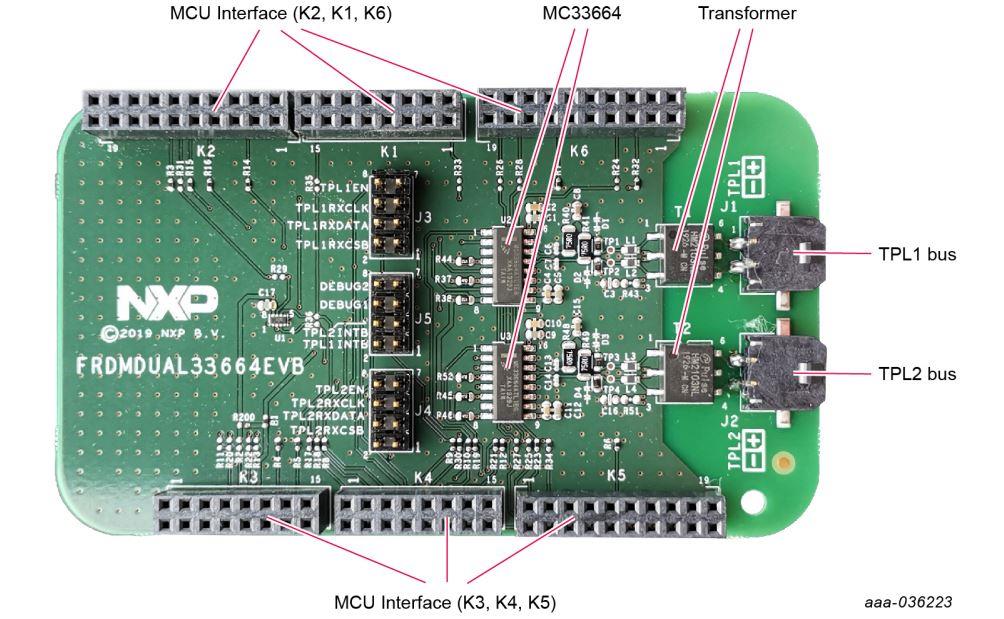

NXP Semiconductors FRDMDUAL33664EVB Evaluation Board is ideal for evaluating and rapid prototyping of MC33664ATL isolated network high-speed transceiver. This transceiver physical layer transformer driver is designed to interface a microcontroller to a high-speed isolated communication network. The FRDMDUAL33664EVB evaluation board allows the user to connect SPI signals from the MCU to the device SPI_TX. This creates bit pulses transmission to the bus through the transformer and the messages received by the device can be converted bit by bit and transferred to the MCU by SPI. The FRDMDUAL33664EVB board features two MC33664ATL1EG isolated communication transceivers in a 16-pin SOICN package, isolated communication by transformers with connector, and single/dual TPL chain interfaces. This evaluation board works with the MC3377x battery cell controllers.
