NXP Semiconductors FRDM-K22F-AGMP03 Sensor Evaluation Kit

NXP Semiconductors FRDM-K22F-AGMP03 Sensor Evaluation Kit provides a demonstration and development platform for the FXLS8962AF 12-Bit Digital Accelerometer and the MPL3115 Absolute Digital Pressure Sensor. The FRDM-K22F-AGMP03 uses the Sensor Toolbox Enablement Software and tools to provide graphic visualization, level  analysis, and  interrupt evaluation and data logging. The Sensor Evaluation Kit also includes example projects for sensors with interrupt, polling, and FIFO modes using I2C and SPI.

The NXP Semiconductors FRDM-K22F-AGMP03 Sensor Evaluation Kit includes an MCU Board based on the Kinetis® K22F MCU. The accompanying Sensor Shield Board is compatible with Arduino and most other NXP Freedom Development Boards.

Features

  • Controlled by Kinetis K22F MCU with Arm® Cortex®-M4 Core (MK22FN512VLH12)
  • Sensor toolbox development kit with a variety of sensors and compatible software tools for NXP’s 10-axis sensor solution
  • Demonstration and development platform for the FXLS8962AF 12-Bit Digital Accelerometer and the MPL3115 Absolute Digital Pressure Sensor
  • Enables quick sensor evaluation and helps accelerate quick prototyping and development using NXP sensors
  • Compatible with Arduino and most NXP Freedom Development Boards
  • Allows evaluation of current consumption and pin voltage characteristics
  • Supports I2C and SPI communication interface with host MCU
  • Supports hardware configurability to switch between accelerometer mode and I2C/SPI interface mode
  • Multiple onboard test points

Software

Listed below are the software collaterals enabling the FRDM-K22F-AGMP03 Sensor Evaluation Kit. This software can be downloaded from NXP Semiconductor using the links below. To download some software collateral, the user will need to register/log in to the NXP website.

  • IoT Sensing SDK: Provides Embedded sensor projects for the Demo and Custom Kits through MCUXpresso
  • Sensor Toolbox-Community Edition (STB-CE): Provides Out-of-Box sensor demo for FXLS8962AF
  • FreeMASTER Sensor Tool: Provides out-of-box sensor demo and application development platform for FXLS8962AF
  • Sensor Fusion: Provides 9-axis Orientation Demo using FXLS8962AF, FXAS21002C, and MAG3110

Kit Contents

  • FRDM-STBC-AGMP03 Sensor Shield Board
  • FRDM-K22F MCU Board
  • USB Cable

Documents

  • User Manual
  • FRDM-K22F-AGMP03 Schematic Diagrams

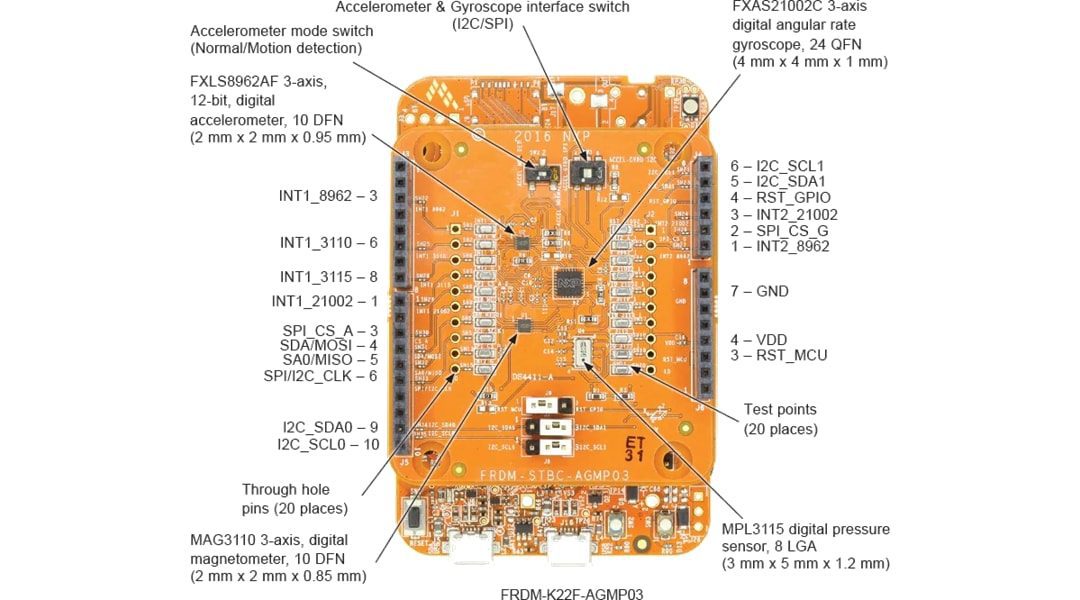

Board Layout

NXP Semiconductors FRDM-K22F-AGMP03 Sensor Evaluation Kit
