NXP Semiconductors Evaluation Kits for the FS2400 Series

NXP Semiconductors Evaluation Kits for the FS2400 Series include the KITFS24SKTFDMEVM and the KITFS2400FRDMEVM. The kits enable engineers to evaluate the FS2400 fail-safe system basis chip (SBC) with switch mode power supply (SMPS) and low dropout (LDO). The FS2400 Evaluation Kits can be connected to the NXP GUI software, which allows the user to interact with registers, try one-time configurations (OTP), and burn the part. The device OTP can be burned twice.

The FS2400 devices can be placed and removed easily from the KITFS24SKTFDMEVM board using the socket. The device OTP can be burned twice. The NXP Evaluation Boards supports the FS2400 device.

Features

Phoenix (3.81mm) male connector for power supply input
Phoenix (3.81mm) male connectors for HVBUCK and HVLDO
Phoenix (3.81mm) male connectors for CAN communication
Ignition key switch
Support OTP fuse capabilities

Embedded USB connection for easy connection to the NXP GUI (access to SPI/CAN bus, I/Os, RSTB, LIMP0, INTB, Debug, AMUX, regulators, registers, OTP emulation, and programming)
LEDs that indicate signal or regulator status

Kit Contents

Assembled and tested evaluation board, with preprogrammed S32K144 microcontroller embedded, placed in an anti-static bag
USB-STD A to USB-B-mini cable
Jumpers mounted on the board

Four connectors, terminal block plug, two positions, 3.81mm pitch between pins
One connector, terminal block plug, three positions, 3.81mm pitch between pins

NXP Semiconductors Evaluation Kits for the FS2400 Series

Features

Kit Contents

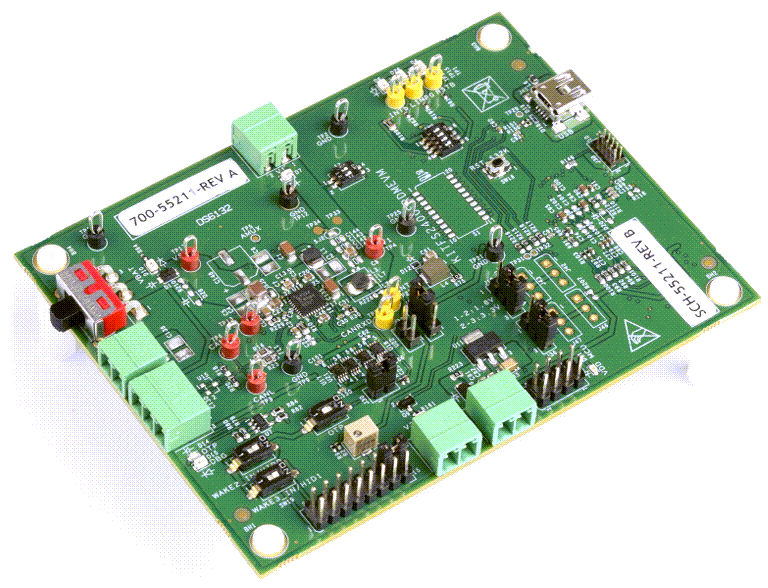

KITFS2400FRDMEVM Layout

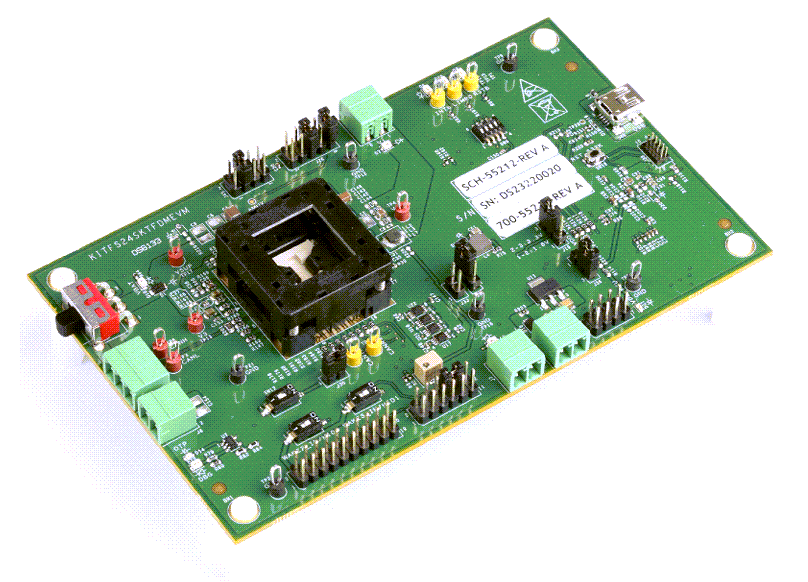

KITFS24SKTFDMEVM Layout
