NMB Technologies Standard Round Brush DC Motors

NMB Technologies Standard Round Brush DC Motors are available with outer diameters from 24mm to 38.8mm and are an ideal solution for high-speed, low-life applications. The brush DC motors feature custom add-ons such as gearboxes and encoders in addition to plug-and-play solutions. These NMB Technologies standard round brush DC motors feature industry-standardized frame sizes, gearboxes, and encoders. The round brush DC motors are ideally used in door locks, automotive vending machines, healthcare, and beauty equipment.

Features

Available from 24mm OD to 38.8mm OD sizes
Offered in metal brush (low current, low noise) or carbon brush (high power, long life) variants
Cost-competitive
In-house production

Plug and play – driver electronics are not necessary
Industry standardized frame size
Gearboxes
Encoders

Specifications

M36N-5
- 24V voltage rating
- 65mm length
M25N-2
- 31V voltage rating
- 30.8mm length

M22E-13
- 3.5V voltage rating
- 18mm length

Applications

Door locks
Office automation (printers, scanners, copiers)
Healthcare and beauty equipment

Automotive
Vending machines

NMB Technologies Standard Round Brush DC Motors

Features

Specifications

Applications

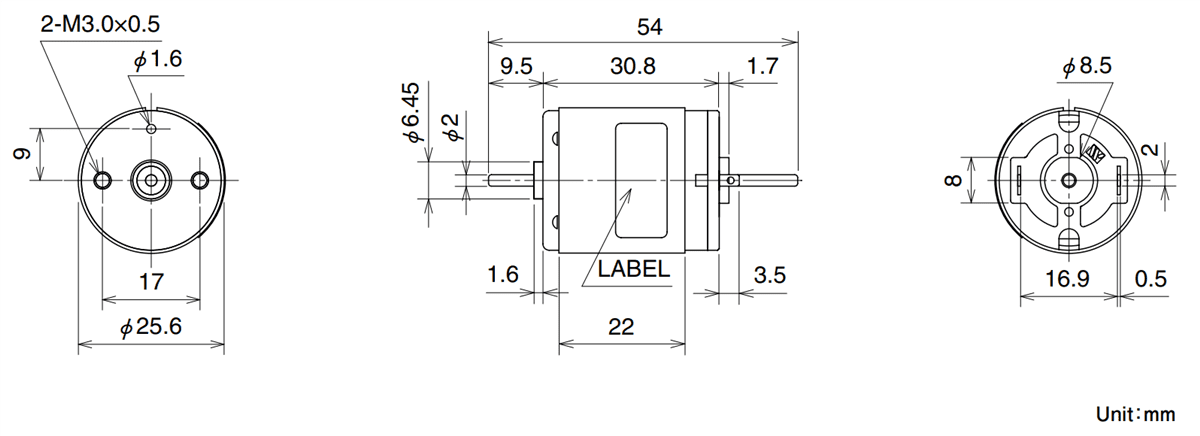

Dimension Diagram – M25N-2

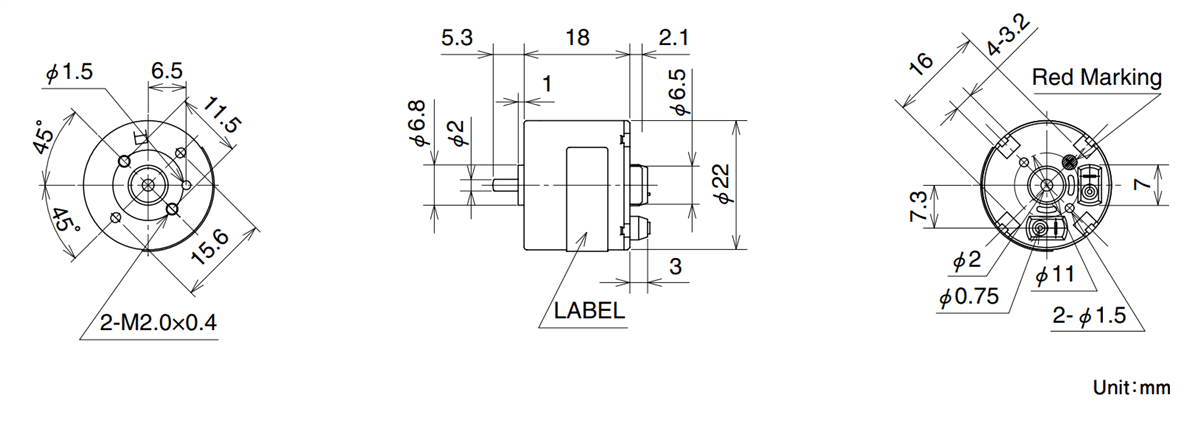

Dimension Diagram – M22E-13

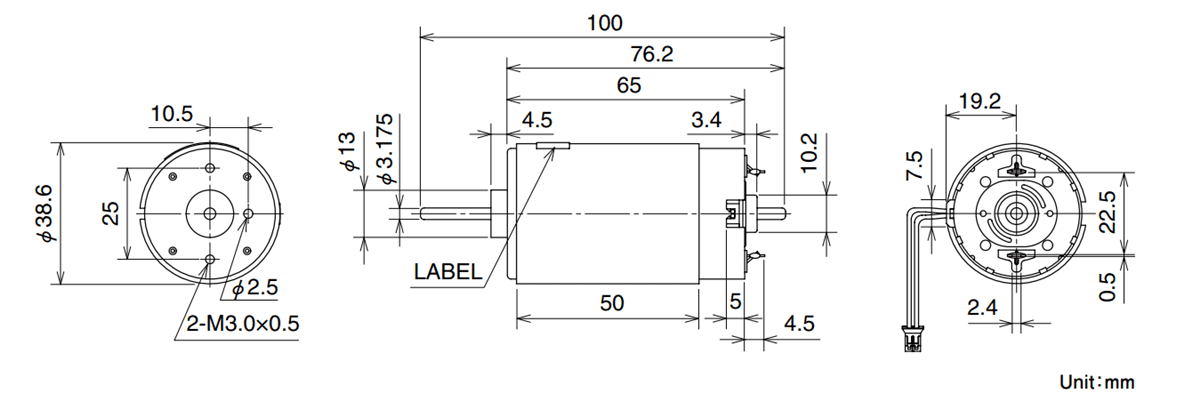

Dimension Diagram – M36N-5
