NMB Technologies MAP DC Brush Motors With Micro Air Pump

NMB Technologies MAP DC Brush Motors With Micro Air Pump features a simplified pump structure. These NMB Technologies MAP DC brush motors feature low-cost pumps by reducing the number of parts and the number of assembly man-hours. The DC brush motors operate at a 5V to 7V voltage range for MAP-AM-265 and a 2V to 3.2V voltage range for MAP-HD-140. These MAP DC brush motors are ideally used in blood pressure monitors for home appliances (for the wrist and upper arm).

Features

Simplified pump structure
Low-cost pump by reducing the number of parts and the number of assembly man-hours

Blood pressure monitor for home appliance (for wrist and upper arm)

Specifications

MAP-AM-265
- 6V of rated voltage
- 5V to 7V voltage range
- 430mA current consumption
- 67.1mm length

MAP-HD-140
- 3V of rated voltage
- 2V to 3.2V voltage range
- 450mA current consumption

NMB Technologies MAP DC Brush Motors With Micro Air Pump

Features

Specifications

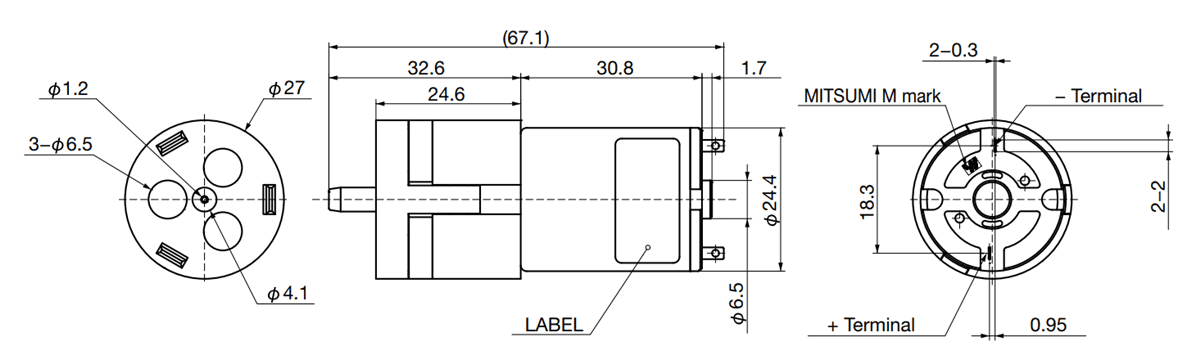

Dimension Diagram – MAP-AM-265

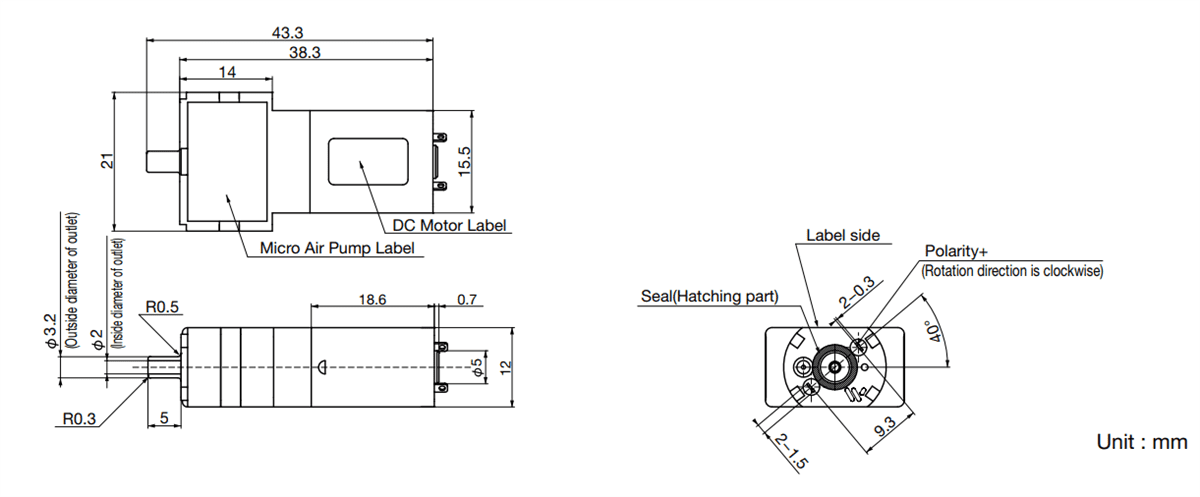

Dimension Diagram – MAP-HD-140
