NKK Switches ZE Multi-Touch Resistive Touch Screens

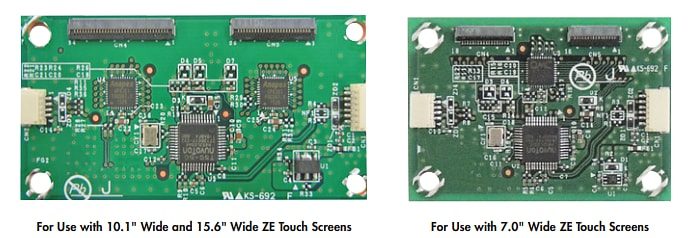

NKK Switches ZE Multi-touch Resistive Touch Screens integrate with devices intended for repetitive use for additional durability and endurance. The ZE series features three models with expanded screen sizes of 7″, 10.1″, and 15.6″ to enhance design capability. NKK Switches ZE Multi-touch Resistive Touch Screens offer a four-wire cell system, which is controlled with a light touch operation similar to smartphones. Internal controller boards, compatible with USB, are engineered to provide smooth, effortless operation with fast coordinate output rates. The touch screens can perform in harsh, rugged environments and have a high resistance to noise. The touch screens provide glare-resistant ITO film to reduce reflection from fluorescent lighting and sunlight. The ZE series is ideal for industrial, communications, ATMs, medical equipment, and other applications.

Features

Light touch operation similar to smartphones
Dual touch operation
High durability and endurance
High resistance to noise

Performs in harsh and rugged environments
4-wire cell system
Input methods: finger, gloved hand, or stylus
Expanded screen sizes

Applications

Industrial automation
Medical equipment
ATMs
Food service

Point-of-sale (PoS) systems and cash registers
Communication systems
Gaming/entertainment
Broadcasting

Specifications

6V_DC max power level
100mA max current rating
0.03N to 0.3N max touch activation force
10M minimum operation life (finger input)

±2.5% max linearity rating
3H minimum surface hardness
-20°C to +80°C operating temperature range
-40°C to +80°C storage temperature range

Videos

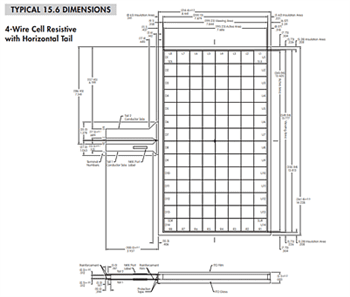

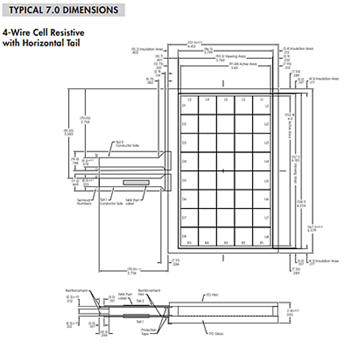

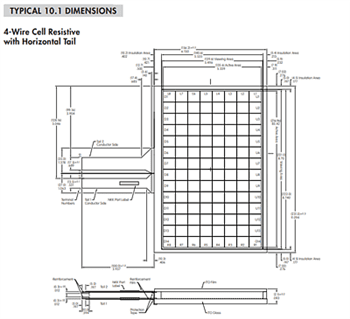

Dimensions

Chart - NKK Switches ZE Multi-Touch Resistive Touch Screens
