NKK Switches FF01 16mm Emergency-Stop Switches

NKK Switches FF01 16mm Emergency-Stop Switches feature a 16mm diameter body and the class-leading shortest behind-panel depth (13.6mm). The compact low-profile FF01 E-Stop Switches provide flexible panel design and feature 25mm or 30mm diameter actuators with optional directional arrows. This NKK Switches series offers single- and double-pole models and pulling and/or twisting reset methods. The E-Stop switches offer an IP65 rating at the front panel and are UL, C-UL, CE, and TÜV certified. The sliding latch mechanism maintains the OFF state of the contacts, assuring safety and reliability.

View Switch Accessories

Features

Low-profile housing and shortest behind panel depth in its class (.535″/13.6mm) facilitate high-density panel layouts
Two methods of resetting by pulling and/or twisting
Achieves IP65 of IEC 60529 Standards (dust tight, protected against water jets from any direction) at front panel
Sliding latch mechanism maintains the OFF state of the contacts
- Ensures high safety and reliability
- Excellent shock and vibration resistance properties amidst chattering due to rugged vibration or impact

Actuators in 25mm and 30mm diameters enable space-conserving installation on panel
Insert-molded solder lug terminals contribute protection for automated-processing techniques
Accessories include switch guard and nameplates (with or without legend) interchangeable with 25mm and 30mm caps

Applications

Medical
Industrial

Material handling
Factory automation

Specifications

0.5A at 24V_DC resistive load
36V_DC rated insulation voltage
2.5kV impulse withstand voltage
50mΩ maximum contact resistance

100MΩ at 500V_DC minimum insulation resistance
100,000 operations minimum mechanical and electrical life
-25°C to +60°C operating temperature range

NKK Switches FF01 16mm Emergency-Stop Switches

Features

Applications

Specifications

Product Overview

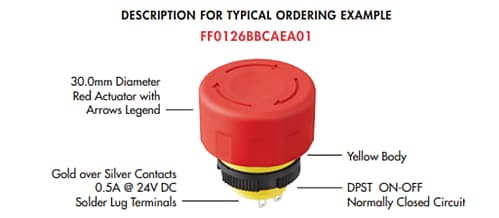

Ordering Description
