NKK Switches FD01 & FD02 Ultra-Thin DIP Rotary Switches

NKK Switches FD01 and FD02 Ultra-Thin DIP Rotary Switches are ultra-thin DIP rotary switches with compact dimensions (7.2mm² or 7.7mm² with a 3.1mm to 3.3mm height) for high-density mounting. NKK FD01 is a through-hole terminal model with standard inch grid spacing, and FD02 is a surface mount (gull-winged) terminal model that secures mechanical stability even during soldering. The internal construction of these rotary switches incorporates metal springs for smooth, crisp operation. Applications include factory automation, robotics, handheld automation devices, communication devices, measuring devices, and audio equipment.

Features

Internal construction incorporating metal springs promotes smooth, crisp operation
7.2mm² or 7.7mm²compact dimensions with a 3.1mm to 3.3mm height, accommodates high-density mounting
Evenly distributed reaction force to ensure a consistent connection

FD01 features through-hole terminals with inch-terminal grid spacing
Packaging in tape-reel for FD02 meets EIA-481-D standards

Applications

Factory automation
Robotics
Handheld automation devices

Communication devices
Measuring devices
Audio equipment

Specifications

0.4VA maximum rating, 20V_AC/DC maximum rating
100mΩ maximum contact resistance (at 20mV, 10mA)
250V_DC insulation resistance, 1GΩ minimum
250V_AC minimum dielectric strength for 1 minute

10,000 operations minimum mechanical and electrical life
0.002Nm ±0.02Nm operating torque
-25°C to +85°C operating temperature range

NKK Switches FD01 & FD02 Ultra-Thin DIP Rotary Switches

Features

Applications

Specifications

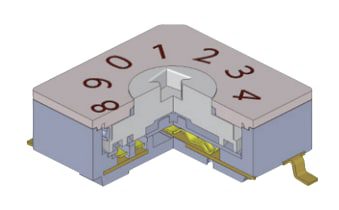

Internal Structure

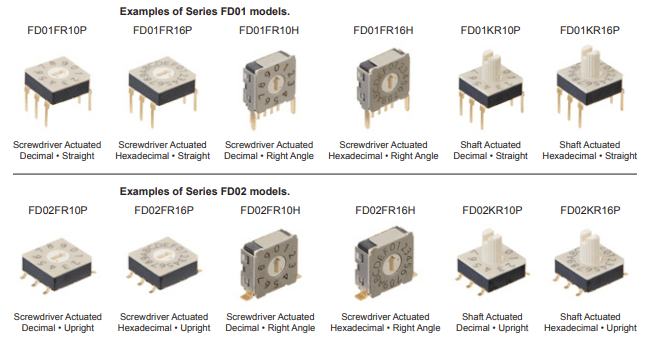

Rotary Switch Types
