Nisshinbo R5642L Overcharge Protection ICs

Nisshinbo R5642L Overcharge Protection ICs are for 1 to 3 serial cells Li-ion/Li-polymer rechargeable battery. The IC provides the high-accuracy voltage detection function and the shutdown function. This can reduce the supply current to the minimum when all cell’s voltage becomes less than the shutdown detection voltage.

Features

Low consumption current
Low shutdown current

Longer driving time with a battery of small capacity

Specifications

High voltage tolerant process
Absolute maximum rating 26V
Low supply current
Normal mode Typ. 0.85µA (VCELLn : 3.9V, for 3-cell)
Overcharge voltage detector with high accuracy
Detection voltage (VDET1n) and accuracy: 4.10V to 4.65V, ± 0.015V (Ta = 25°C)
Release voltage (VREL1n) VDET1n – 0V to VDET1n − 0.5V

Delay time selectable (tVDET1) 2, 4, 6 sec, with delay shortening function
Release condition, auto release
COUT output (CMOS output, active-high) Typ. 4.7V
Shutdown function
Detection voltage Typ. 3.5V ±0.3V
Shutdown current, max. 0.1µA
1 to 3 cells selectable battery protection

Applications

Smart Phone
Tablet PC

Game
Hearing Aid

Nisshinbo R5642L Overcharge Protection ICs

Features

Specifications

Applications

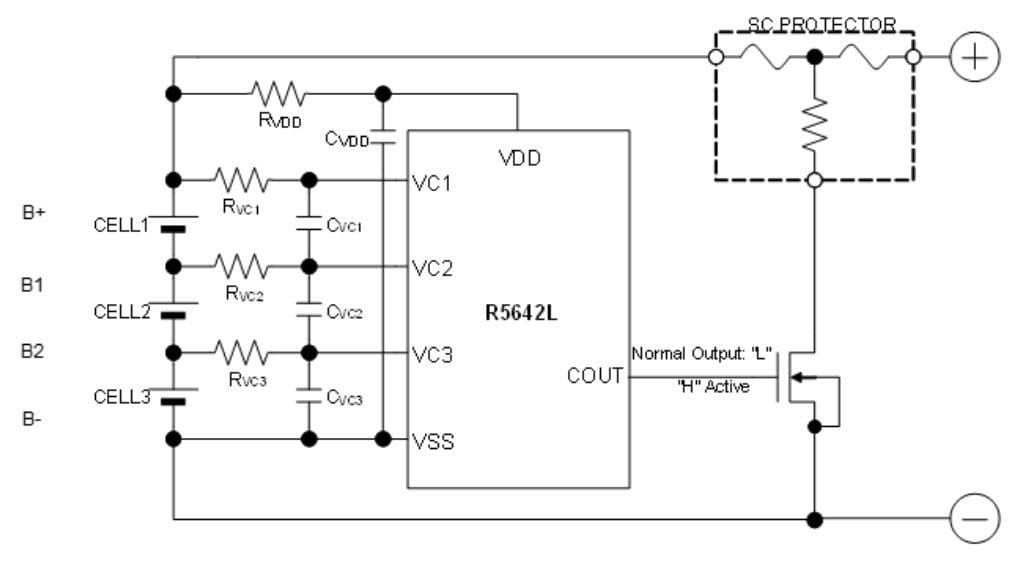

TYPICAL APPLICATION CIRCUIT
