Nisshinbo NJU7725x & NJU7726x High-Speed CMOS Comparators

Nisshinbo NJU7725x and NJU7726x High-Speed CMOS Comparators operate from a low 2.7V to 5.5V voltage and a low supply current of only 140µA/ch. This feature makes them ideal for battery-powered applications. The NJU7725x and NJU7726x are based on Dynamic Transient Stabilizer™ technology, which suppresses fluctuations in propagation delay time even if the reference voltage for voltage detection fluctuates. The NJU7725 provides a Push-Pull output, and the NJU7726x provides an Open-Drain output.

The Nisshinbo NJU7725x and NJU7726x High-Speed CMOS Comparators are available in ultra-small, leadless packages measuring 1.6mm x 1.6mm (DFN6) and 2.0mm x 2.0mm (DFN8). The devices are also offered in industrial standard SOT-23-5, SC-88A, and MSOP8 (VSP8) leaded packages.

Features

2.7V to 5.5V supply voltage
140µA/ch supply current
Propagation delay (T_PLH / T_PHL)
- NJU7725x: 42ns / 35ns
- NJU7726x: 125ns / 32ns
Rail-to-Rail common-mode input voltage range: 0.2V beyond supply rails
Dynamic Transient Stabilizer offers Rail-to-Rail input with no propagation delay fluctuation
Output
- NJU7725x: Push-Pull
- NJU7726x: Open-Drain

Output drive current
- Sink (V_O = 1V) 40mA
- Source (V_O = 4V, NJU7725x) 37mA
-40°C to 125°C operating temperature range
Package options
Leadless small packages
- 1.6mm x 1.6mm DFN6-G1 (ESON6-G1)
- 2.0mm x 2.0mm DFN8-U1 (ESON8-U1)
Standard leaded packages
- SOT-23-5
- SC-88A
- MSOP8 (VSP8)

Applications

Protection circuit for overvoltage detection, overcurrent detection, or overheat detection
Window comparators
LED drivers

Relay drivers
Electronic equipment
Voltage level translators

Nisshinbo NJU7725x & NJU7726x High-Speed CMOS Comparators

Features

Applications

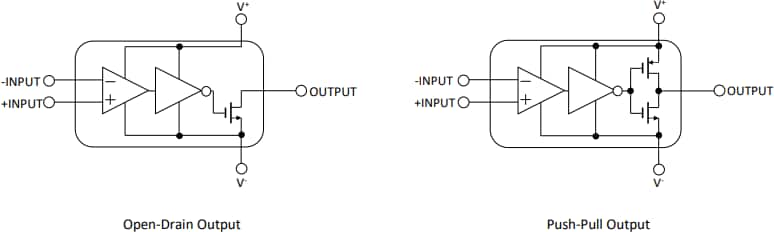

Block Diagram

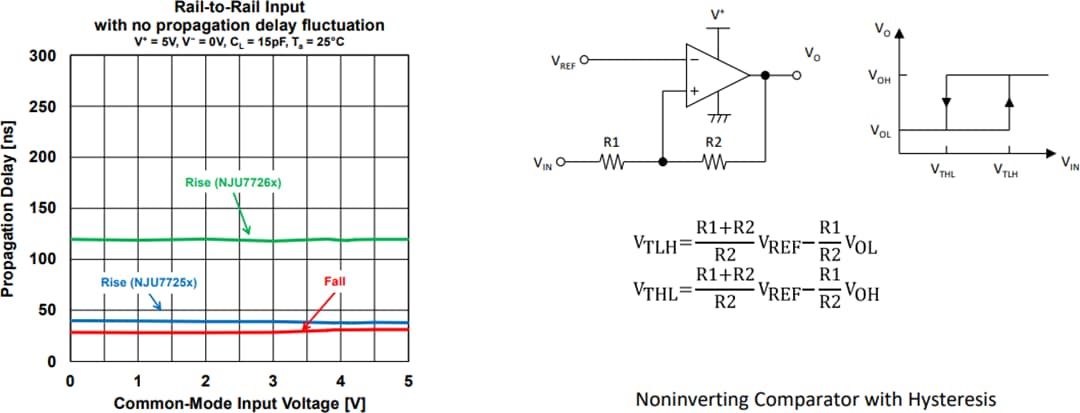

Typical Characteristics
