Nisshinbo NJM8532R-Z Dual Operational Amplifier IC

Nisshinbo NJM8532R-Z Dual Operational Amplifier IC is a rail-to-rail input and output single supply op-amp IC with 14V supply voltage and low power. This op-amp IC is AEC-Q100 grade 1 qualified and is ideal for battery-powered applications requiring an optimal balance between low power, low noise, and wide bandwidth. The NJM8532R-Z op-amp IC features a 580μA typical low supply current, low noise of 10nV/√Hz at 1kHz, 5mV maximum offset voltage, and 0.4V/μs typical slew rate. This op-amp IC operates within the -40°C to 125°C operating temperature range and comes in an MSOP8 (VSP8) package. Typical applications include audio amplifiers, hi-side current sensing, and buffering.

Features

  • Low noise
  • Low power
  • Bipolar technology
  • AEC-Q100 grade1 qualified
  • RoHS compliant

Specifications

  • VICM=0V to 5V, at V+=5V (Rail-to-Rail input)
  • VOH≥4.85V/VOL≤0.15V, at V+=5V, RL = 20kΩ (Rail-to-Rail output)
  • 1.8V to 14V wide supply voltage range
  • 5mV maximum offset voltage
  • 0.4V/μs typical slew rate
  • 580μA typical low supply current
  • 10nV/√Hz low noise at 1kHz
  • -40°C to 125°C operating temperature range
  • MSOP8 (VSP8) package

Applications

  • Audio amplifiers
  • Hi-side current sensing
  • Buffering

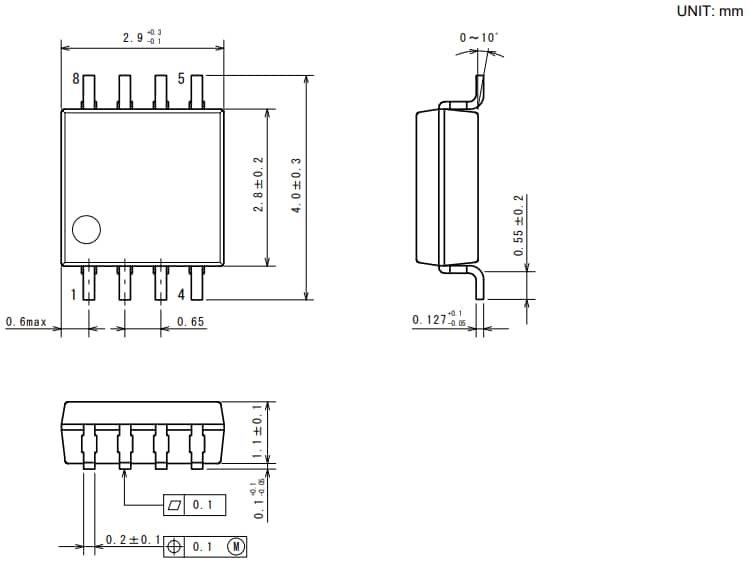

Package Dimensions

Mechanical Drawing - Nisshinbo NJM8532R-Z Dual Operational Amplifier IC
