Nisshinbo NJL5912R Photo Reflector

Nisshinbo NJL5912R Photo Reflector is a compact surface-mount type photo reflector. This photo reflector is built in a high brightness infrared LED and a high sensitive phototransistor. The NJL5912R photo reflector features a built-in visible light cut-off filter function. This photo reflector employs Chip On-Board Package (COBP) technology and comes with 0.5mm thickness. Typical applications include detecting the lens location for cellular phone’s camera modules, detecting the needle position for radio-controlled watches, and detecting the original point of encoders.

Features

Compact surface-mount type photo reflector
Built-in visible light cut-off filter function
Pb-free solder re-flowing permitted (260°C, 2 times)

Comprised of a high brightness infrared LED and a high sensitive phototransistor
COBP technology and comes in a miniature thin package with 1.06mm x 1.46mm x 0.5mm dimensions

Applications

Detecting the location of the lens unit for cellular phone’s camera module
Detecting the needle position for radio-controlled watches
Detecting the original point of the encoder

Nisshinbo NJL5912R Photo Reflector

Features

Applications

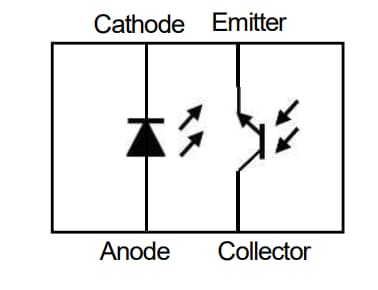

Block Diagram

Performance Graphs
