Nisshinbo NJG1818K75 Broadband SPDT Switch

Nisshinbo NJG1818K75 Broadband SPDT Switch features low insertion loss and high isolation for high frequencies up to 7.125GHz, making it ideal for Wi-Fi® 6 (IEEE 802.11ax) applications. The NJG1818K75 provides high power performance with a low 1.8V operating and control voltage. The device also integrates ESD protection devices on each port to ensure excellent ESD robustness. Integrated DC blocking capacitors at all RF ports reduces required external components.

The Nisshinbo NJG1818K75 Broadband SPDT Switch is available in an ultra-small DFN6-75 package, ideal for space-constrained applications.

Features

1.0GHz to 7.125GHz frequency range
1.6V to 5.0V operating voltage range; 1.8V typical
1.8V (typical) control voltage
High linearity
- P_-1dB = +31dBm typical @ f = 7.125GHz, V_DD = 1.8V
Low insertion loss
- 0.50dB typical @ f = 2.4GHz to 2.5GHz, V_DD = 1.8V
- 0.50dB typical @ f = 4.9GHz to 5.9GHz, V_DD = 1.8V
- 0.55dB typical @ f = 5.9GHz to 7.125GHz, V_DD = 1.8V

High isolation
- 25dB typical @ f = 2.4GHz to 2.5GHz, V_DD = 1.8V
- 25dB typical @ f = 4.9GHz to 5.9GHz, V_DD = 1.8V
- 25dB typical @ f = 5.9GHz to 7.125GHz, V_DD = 1.8V
380mW power dissipation
-40°C to +105°C operating temperature range
-55°C to +150°C storage temperature range
1.0mm x 1.0mm x 0.375mm DFN6-75 package
Halogen-free and RoHS compliant, MSL1

Applications

Wi-Fi 6 and other 802.11a/b/g/n/ac/ax WLAN networks
Transmit and receive switching, antenna switching, and other switching applications

Wi-Fi modules and access points
Smartphones and other mobile devices

Resources

Datasheet
Product Brief

Nisshinbo NJG1818K75 Broadband SPDT Switch

Features

Applications

Resources

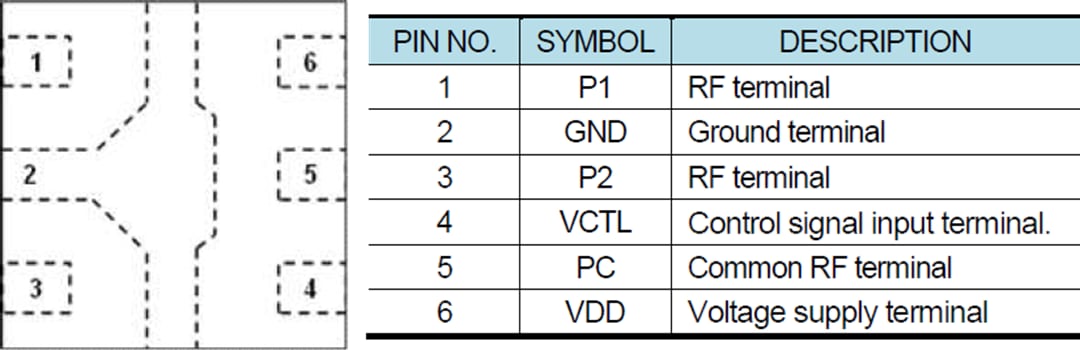

Pin Designations

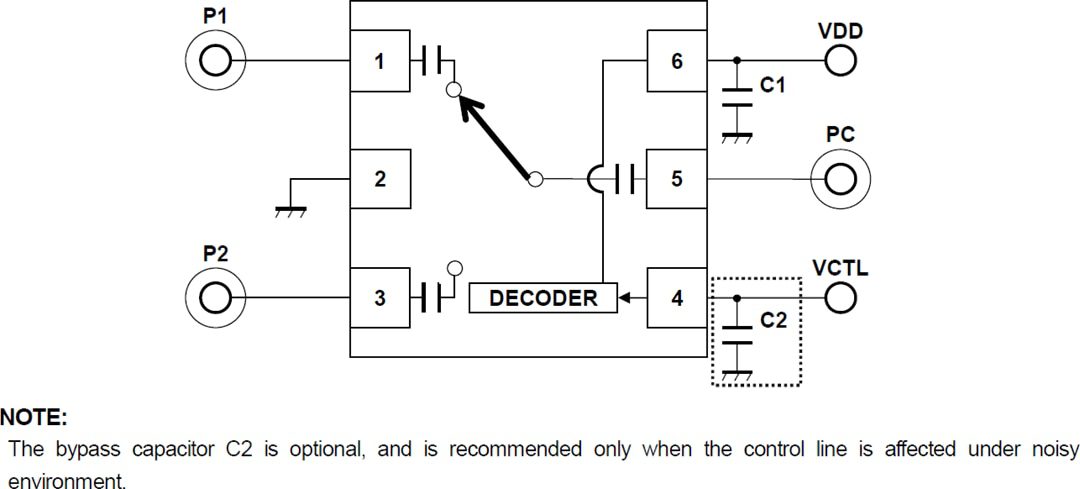

Application Circuit
