Nidec Components SH-7000 DIP Rotary Coded Switches

Nidec Components SH-7000 DIP Rotary Coded Switches feature center common terminal pins location and high digit visibility. The rotary-coded switches come in real/complementary/gray code formats and BCD (Decimal) and BCH (Hexadecimal) circuit types. These SH-7000 switches are available in J-hook, gull-wing, and through-hole terminals. The SH-7000 rotary switches operate and store from -40°C to +85°C and -40°C to +105°C (gray code) temperature ranges, respectively.

Features

  • RoHS compliant
  • Center Common terminal pins location
  • High digit visibility
  • BCD (Decimal) and BCH (Hexadecimal) circuit types
  • -40°C to +85°C and -40°C to +105°C (gray code) operating temperature range
  • Gray code output available
  • J-hook, gull-wing, and through-hole shape of terminals
  • Real/complementary/gray code formats
  • Washable

Internal Structure

Block Diagram - Nidec Components SH-7000 DIP Rotary Coded Switches

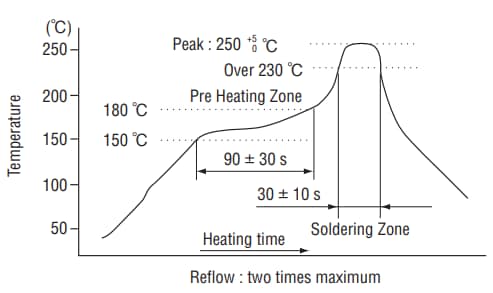

Reflow Profile

Chart - Nidec Components SH-7000 DIP Rotary Coded Switches
