Nidec Components M22L10 Wirewound Multi-Turn Potentiometers

Nidec Components M22L10 Wirewound Multi-Turn Potentiometers offer a rotational life of 5 million turns and allow for a fine setting. Nidec Components M22L10 Wirewound Multi-Turn Potentiometers feature nominal resistance of 1kΩ to 20kΩ. These multi-turn potentiometers provide ±5% resistance tolerance, ±0.2% independent linearity, 5Ω maximum end resistance, and a 2W power rating.

Features

Allows for fine setting
Long life

1kΩ to 20kΩ nominal resistance
RoHS compliant

Specifications

±5% resistance tolerance
±0.2% independent linearity
5Ω maximum end resistance
3600° effective electrical angle
3600° +10°/0 mechanical angle
2W power rating

1000V_RMS dielectric strength for 1 minute
1000MΩ (at 500V_DC) minimum insulation resistance
±50ppm/°C temperature coefficient of resistance
-40°C to +85°C operating temperature range
5 million turns (at the reciprocation of 10 rotations) rotational life

Basic Construction

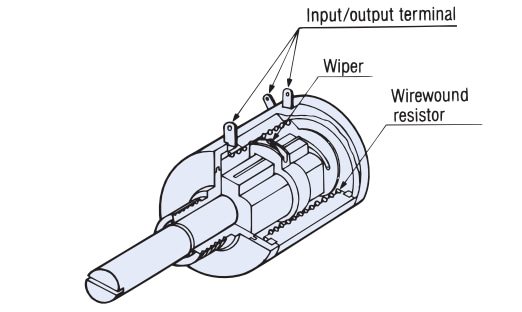

Block Diagram - Nidec Components M22L10 Wirewound Multi-Turn Potentiometers
