Nidec Components CAS & CUS Slide Switches

Nidec Components CAS and CUS Slide Switches have a low-profile design of 1.4mm and 2.5mm. These Nidec slide switches are compatible with most automatic pick-and-place machinery. The CAS switches come in washable and non-washable sealing types with seal tape. Whereas the CUS switches come in the non-washable sealing type. The CAS and CUS switches are available in SPDT, SP3T, SP4T, 2PDT, and dual SPDT circuit variants. These slide switches operate at 4V_DC, 6V_DC, and 24V_DCvoltage ratings with 300mA, 100mA, and 25mA current ratings. The CAS switches operate from -40°C to +85°C temperature range, and CUS switches operate from -20°C to +70°C temperature range.

Features

CAS
- Compatible with most automatic pick-and-place machinery
- Compact and space-saving SMD type
- Excellent contact stability by twin gold-plated contact
- 2.5mm low-profile design
- Washable- and non-washable-type sealing
- RoHS compliant

CUS
- 1.4mm low-profile design
- Non-washable-type sealing
- RoHS compliant

Specifications

CAS
- 50mΩ maximum contact resistance
- 100MΩ minimum insulation resistance
- 6V_DC and 24V_DC voltage ratings
- 100mA and 25mA current ratings
- SPDT, 2PDT, and dual SPDT circuit variants
- -40°C to 85°C temperature range

CUS
- 70mΩ maximum contact resistance
- 100MΩ minimum insulation resistance
- 4V_DC voltage rating
- 300mA current rating
- SPDT, SP3T, SP4T, and 2PDT circuit variants
- -20°C to 70°C temperature range

Internal Structures

Block Diagram - Nidec Components CAS & CUS Slide Switches

Nidec Components CAS & CUS Slide Switches

Features

Specifications

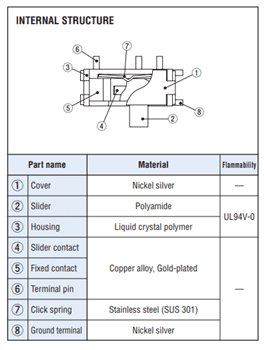

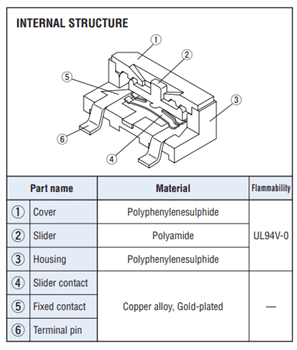

Internal Structures
