Nichicon LGC Miniature Snap-In Capacitors

Nichicon LGC Miniature Snap-In Capacitors are ultra-small-sized snap-in terminal-type capacitors that provide +105°C long-life assurance. Nichicon LGC Mini Snap-In Capacitors offer a smaller case size than the LGX series and are well-suited for equipment down-sizing. The series operates over a -40°C to +105°C temperature range, features a 500V rated voltage, and provides a 68µF to 680µF rated capacitance range.

Features

Snap-in terminal type
+105°C long life assurance, ultra-smaller-sized
One rank smaller case size than LGX

Suited for equipment down-sizing
RoHS compliant (2011/65/EU,(EU)2015/863)

Specifications

-40°C to +105°C temperature range
500V rated voltage
68µF to 680µF rated capacitance range

±20% at 120Hz, +20°C capacitance tolerance
22mm to 35mm diameter
25mm to 60mm length

Nichicon LGC Miniature Snap-In Capacitors

Features

Specifications

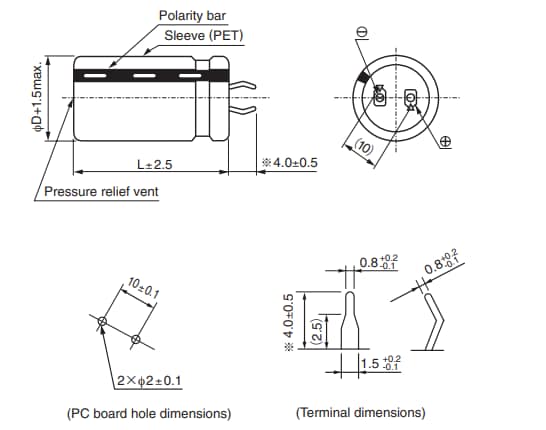

Product Drawing
