Nichicon EVSLB-EHEP02A Evaluation Board

Nichicon EVSLB-EHEP02A Evaluation Board is designed to allow easy evaluation of power circuits and various environmental power generation devices. This board allows users to test the SLB series by combining various energy-harvesting devices. The EVSLB-EHEP02A evaluation board is used for the SLB series with energy harvesting control. This evaluation board provides an easy way to configure the energy-harvesting powered source. The built-in Power Management IC (PMIC) optimizes power collection efficiency according to the power generation device used. Applications include environmental monitoring/sensing systems, disaster prevention infrastructure, asset management, smart home, high functionality ESL, and Wireless power receiving system.

Features

Solar (DC) and vibration power generation (AC)
Input from various harvesters is possible
Supports power collection settings optimized for harvester characteristics
On board AC source rectifier
Supports an optimized configuration for efficient energy collection according to the characteristics of the harvester
Reset switch for PMIC
Test pin placement on main signal lines

Compatible with all five types of SLB series
Pre-setting value and custom setting (custom mode) are available for charge/discharge control threshold of the storage element
Supports two outputs (SLB direct / 3V-5V)
High customizability
External control terminal
90mm x 70mm x 12mm product dimensions
Dip switch for configuration setting easy to use

Applications

Environmental monitoring/sensing systems
Disaster prevention infrastructure
Asset management

Smart home
High functionality ESL
Wireless power receiving system

Nichicon EVSLB-EHEP02A Evaluation Board

Features

Applications

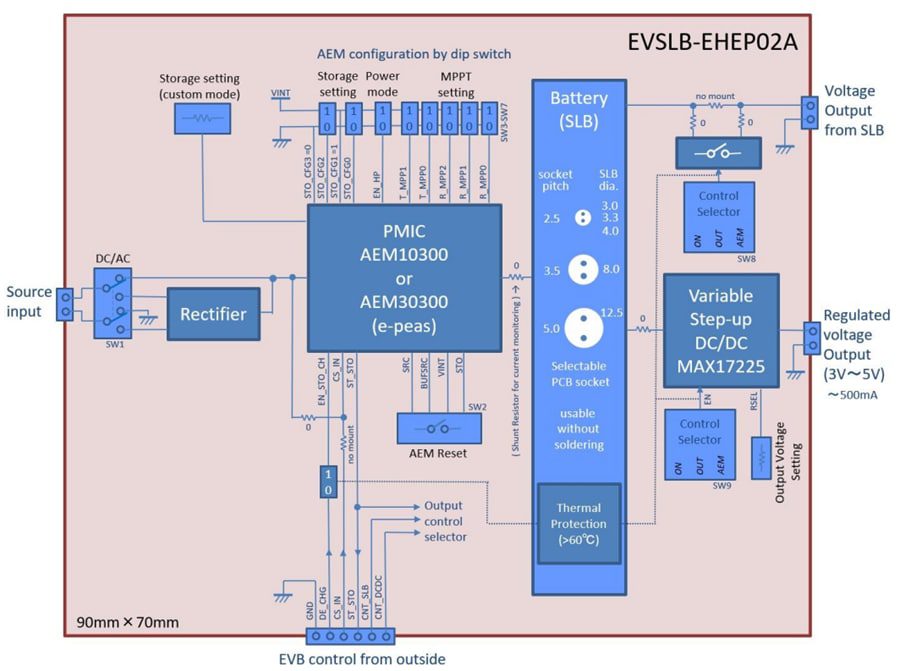

Block Diagram
