Nexperia SOT8015 Surface-Mounted Package Products

Nexperia SOT8015 Surface-Mounted Package Products offer a plastic, leadless, extremely thin small outline package with side-wettable flanks (SWF). The SOT8015 provides three terminals, a 0.65mm pitch and a 1.1mm x 1mm x 0.48mm body. The SOT8015 package has a package style descriptive code of HUSON (thermal enhanced ultra thin small outline, no leads) and a 1.4mm x 1.8mm footprint. The Nexperia SOT8015 devices have a 2.52mm² footprint area.

Features

B (bottom) Terminal position code
HUSON3 Package type descriptive code
DFN1110D-3 Package type industry code
HUSON (thermal enhanced ultra thin small outline, no leads) package style descriptive code
P (plastic) Package body material type
MO-340BA JEDEC package outline code

S (surface mount) Mounting method type
No package outline detail graphic references
29-11-2019 Issue date
SOT8015 Manufacturer package code
1.4mm x 1.8mm Footprint dimensions
2.52mm² Footprint area

Nexperia SOT8015 Surface-Mounted Package Products

Features

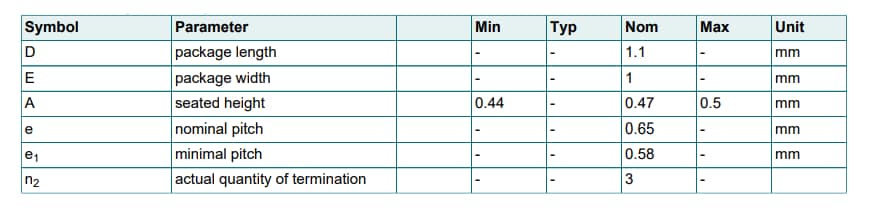

Package Summary

Videos

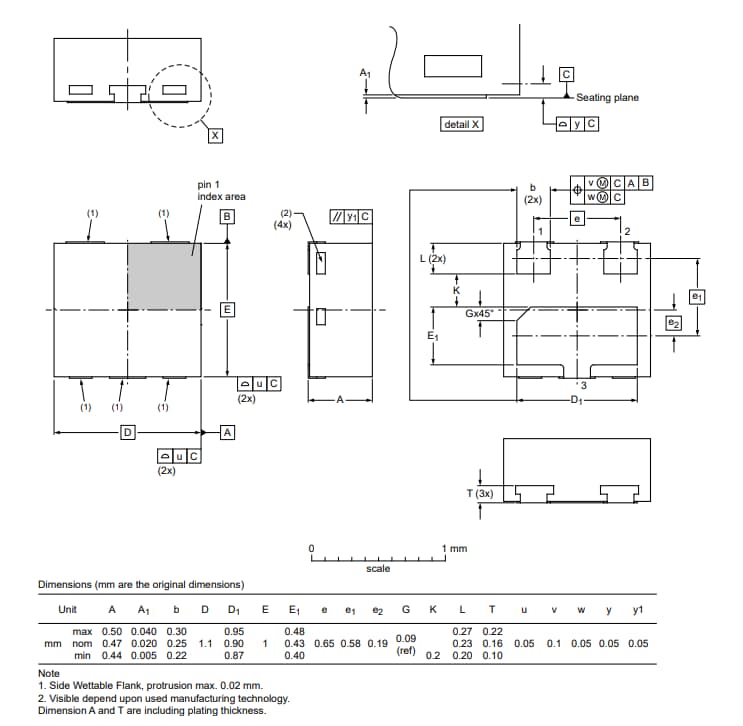

Package Outline
