Nexperia SOT8009 Surface-Mounted Package Products

Nexperia SOT8009 Surface-Mounted Package Products offer a plastic, leadless ultra small outline package with side-wettable flanks (SWF). The SOT8009 package features three terminals, a 0.8mm pitch with a 1.4mm x 1.2mm x 0.48mm body. The SOT8009 products use a DFN1412D-3 descriptive code and a USON (ultra thin small outline; no leads) package style. The Nexperia SOT8009 Surface-Mounted Package Products support a 2mm x 1.7mm footprint and a 3.4mm² footprint area.

Features

B (bottom) Terminal position code
DFN1412D-3 Package type descriptive code
DFN1412D-3 Package type industry code
USON (ultra thin small outline; no leads) Package style descriptive code
P (plastic) Package body material type
MO-340CA JEDEC package outline code

S (surface mount) Mounting method type
No package outline detail graphic references
6-12-2019 Issue date
SOT8009 Manufacturer package code
2mm x 1.7mm Footprint dimensions
3.4mm² Footprint area

Nexperia SOT8009 Surface-Mounted Package Products

Features

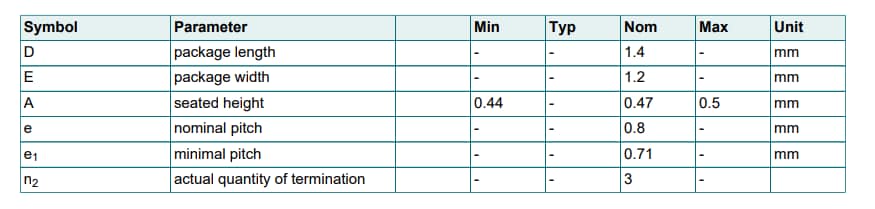

Package Summary

Videos

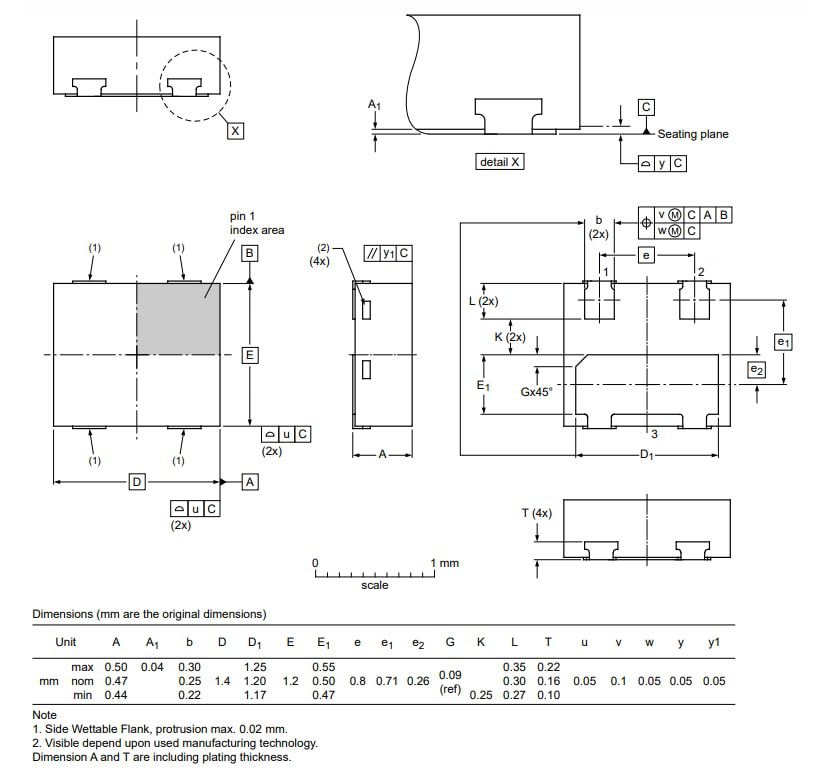

Package Outline
