Nexperia PESD2CANFD36x ESD Protection Devices

Nexperia PESD2CANFD36x ESD Protection Devices protect two automotive In-vehicle network bus lines from ElectroStatic discharge (ESD) damage. The PESD2CANFD36x features a 36V reverse stand-off voltage and low clamping voltage. The Nexperia PESD2CANFD36x Devices are available in a small SOT23 or SOT323 Surface-Mounted Device (SMD) plastic package. The devices are qualified according to AEC-Q101 and suggested for use in automotive applications.

Features

  • 36V Reverse stand-off voltage
  • Low clamping voltage
  • 6pF Low capacitance
  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • 24V board net / truck systems
  • CAN / CAN-FD
  • FlexRay
  • SENT

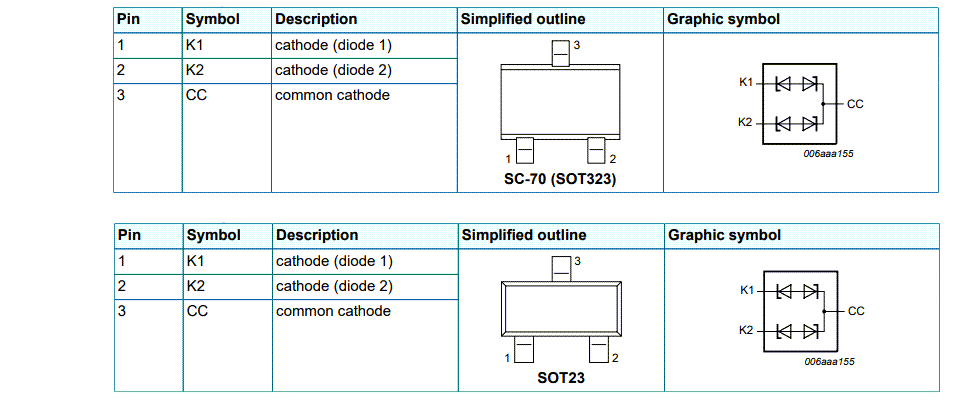

Pinning Diagrams

Application Circuit Diagram - Nexperia PESD2CANFD36x ESD Protection Devices
