Nexperia NEH2000BYJ Energy Harvesting PMIC

Nexperia NEH2000BYJ Energy Harvesting PMIC is a high-performance energy harvesting solution for low-power applications. The NEH2000BYJ harvests energy generated by a photovoltaic (PV) cell. The energy charges a rechargeable battery. Nexperia’s Maximum Power Point Tracking (MPPT) uses an embedded hill-climbing algorithm to deliver the maximum power to the load. The MPPT is designed to be independent of specific characteristics of the harvesters. Any harvester that fits the specifications of the chip can be used. The algorithm can detect the maximum power point every 0.7s resulting in maximum efficiency in various environments where energy can rapidly change over time.

The Nexperia NEH2000BYJ Energy Harvesting PMIC is available in a 16-lead, 3mm x 3mm QFN package, ideal for space-constricted applications.

Features

High-efficiency, low-power DC-DC converter
Harvesting power range from 35μW to 2mW
Advanced MPPT to maximize efficiency

Ultra-fast MPPT interval of 0.7 second
Small BOM with no external inductor required
Multiple rechargeable batteries compatibility

Applications

Wireless loT devices
Smart remote controls
Electronic shelf labels
Wearable devices

Industrial and environmental monitoring
Consumer electronics
Beacons

Videos

Typical Application

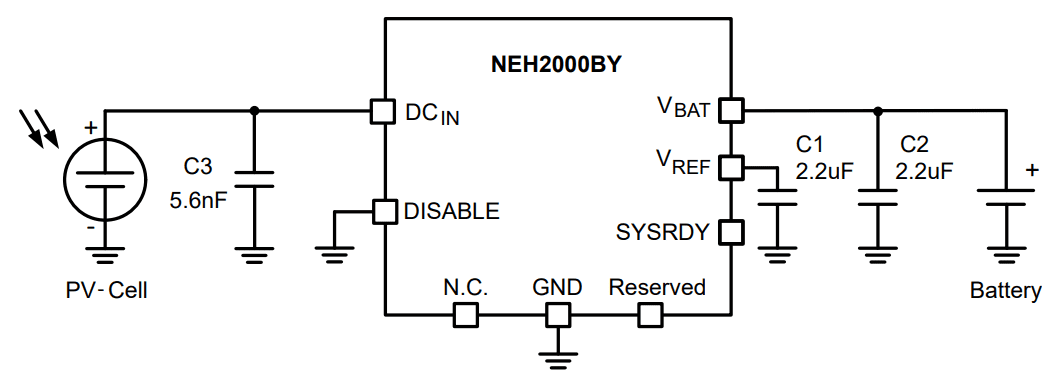

Application Circuit Diagram - Nexperia NEH2000BYJ Energy Harvesting PMIC
