Nexperia NBM5100A/B & NBM7100A/B Battery Boosters

Nexperia NBM5100A/B and NBM7100A/B Battery Boosters are designed to remove the limitations associated with lithium batteries and enhance performance. The Nexperia boosters have the option of either an I²C or SPI interface. The NBM5100A/B can be easily integrated into devices, allowing for easy feature setting and system information reading. While the NBM5100A and NBM7100A support the I²C interface, the NBM5100B and NBM7100B support the SPI interface, making the devices versatile for various applications.

Features

2mA to 16mA programmable constant battery load current
Protection against battery voltage dips (brown-out)
>125mA (NBM7100A, NBM7100B) or >200mA (NBM5100A, NBM5100B) high output current
1.8V to 3.6V regulated programmable output voltage
Low output voltage ripple
<50nA ultra-low standby current
Typical conversion efficiency of 90% with adaptive optimization
Integrated fuel gauge
Integrated balancing circuit (NBM5100A, NBM5100B)

One auxiliary regulated output pin
Only three passive components required
Small 16-pin lead-free package (SOT763-1/DHVQFN16; 2.5mm x 3.5mm x 0.85mm)
ESD protection
- ANSI/ESDA/Jedec JS-001 Class 2 exceeds 2kV HBM
- ANSI/ESDA/Jedec JS-002 Class C2a exceeds 0.5kV CDM
Specified from -40°C to +85°C

Applications

Wireless sensors
Long-range wireless IoT nodes, e.g., LoRa
Agriculture sensor networks

Wearables
Utility metering

Videos

Block Diagrams

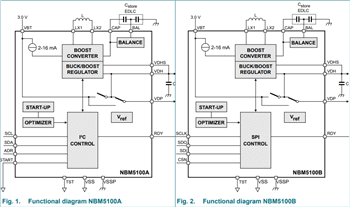

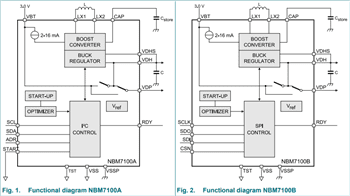

Block Diagram - Nexperia NBM5100A/B & NBM7100A/B Battery Boosters
