Nexperia NBM5100 & NBM7100 Evaluation Boards

Nexperia NBM5100 and NBM7100 Evaluation Boards evaluate the integrated circuits of the NBM5100x and NBM7100x battery boosters. The Nexperia NBM5100 and NBM7100 offer seamless integration with PC applications and standalone setups. These fully assembled evaluation boards have all the essential components for battery boosters’ performance and behavior.

Features

Plug-and-play
- Contains all necessary components except for the CR2032 battery
- Includes a DIL converter board, enabling an easy evaluation of the product in an application prototype or on a breadboard

GUI included, all variants expose a USB to SPI/USB to I²C interface to allow control of the battery booster from a PC application
Designed for coin cell batteries like CR2032
Designed to evaluate the battery booster with electrolytic capacitors as a storage element

Applications

Wearable devices
IoT sensors
Medical implants
Remote controls
Wireless keyboards

Smartwatches
Fitness trackers
Hearing aids
Industrial sensors
Tracking devices

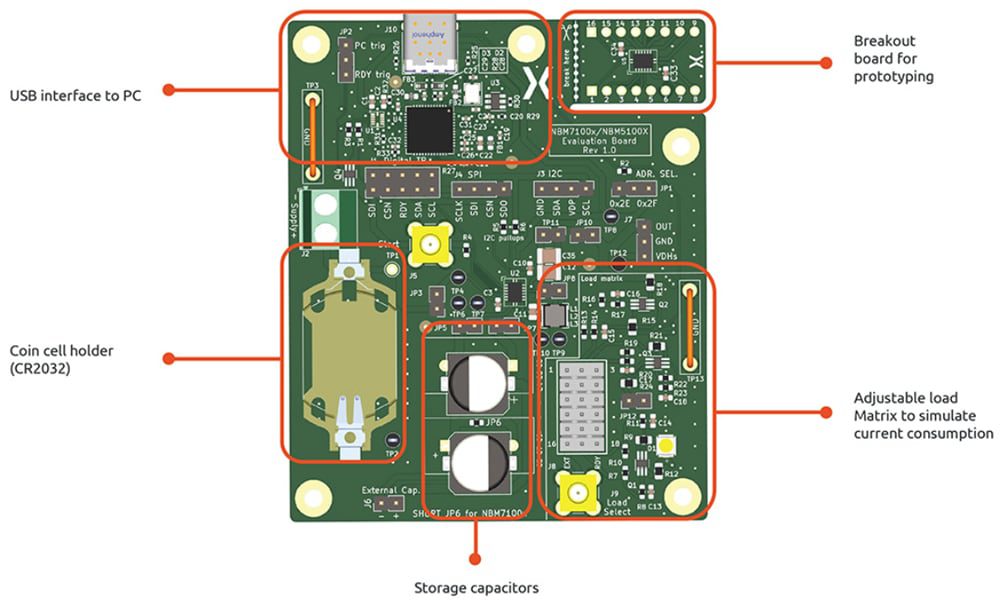

Overview

Nexperia NBM5100 & NBM7100 Evaluation Boards
