Nexperia BZX38450-Q Voltage Regulator Diodes

Nexperia BZX38450-Q Voltage Regulator Diodes offer compact voltage regulation for high-density circuits. These low-current devices operate at a 1.8V to 75.0V wide voltage range with a maximum 250mA forward current. The BZX38450-Q Diodes are specified at a low 50μA test current, making them ideal for low bias and portable battery-powered applications.

The Nexperia BZX38450-Q Voltage Regulator Diodes are offered in a compact 1.7mm x 1.25mm SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package. These devices are AEC-Q101 qualified for use in automotive applications.

Features

AEC-Q101 qualified
≤300mW total power dissipation
Approximately ±5% tolerance

1.8V to 75V working voltage range
1.7mm x 1.25mm SOD323 (SC-76) package; 1.3mm pitch

Applications

Low-current general regulation functions
Low bias and portable battery-powered applications
Automotive applications

Specifications

0.9V maximum forward voltage (V_F)
250mA forward current (I_F)
40W non-repetitive peak reverse power dissipation (P_ZSM)
-55°C to +150°C ambient operating temperature range (T_amb)

415K/W thermal resistance from junction to ambient (R_th(j-a))
110K/W thermal resistance from junction to solder point (R_th(j-sp))

Resources

Datasheet
Package Information

Nexperia BZX38450-Q Voltage Regulator Diodes

Features

Applications

Specifications

Resources

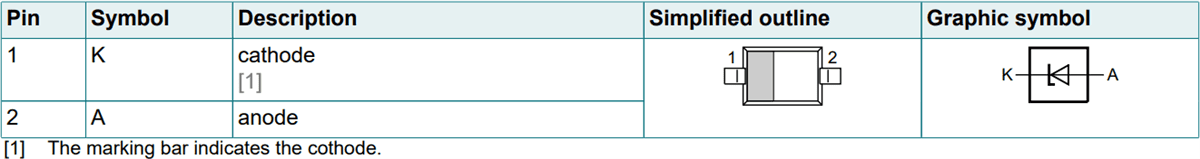

Pin Designations

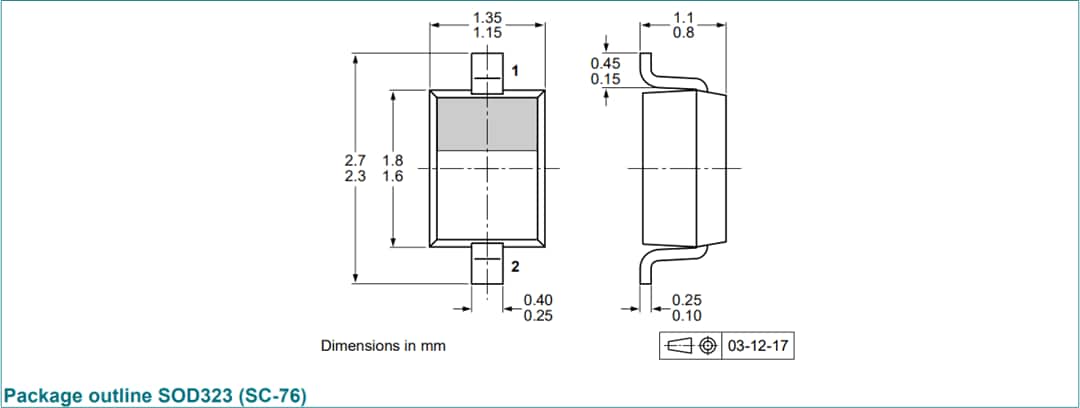

Package Outline
