Nexperia BUK7Y1R0-40N & BUK7Y3R1-80M N-Channel MOSFETs

Nexperia BUK7Y1R0-40N and BUK7Y3R1-80M N-Channel MOSFETs are designed and qualified to meet AEC-Q101 requirements, delivering high performance and endurance. These MOSFETs offer fast and efficient switching with optimal damping and low spiking. The BUK7Y1R0-40N and BUK7Y3R1-80M N-channel MOSFETs are encapsulated within LFPAK56 packages. The BUK7Y1R0-40N N-channel MOSFET utilizes the Trench 15 low-ohmic enhanced-Trench Bottom Oxide (e-TBO) technology, while the BUK7Y3R1-80M employs the Trench 14 low-ohmic split-gate technology. These N-channel MOSFETs are EU RoHS-compliant and feature a 175°C maximum junction temperature range. Typical applications include motors, lighting, and solenoid control, 12V automotive systems, and ultra-high-performance power switching.

Features

  • Fully automotive qualified to AEC-Q101 (175°C rating suitable for thermally demanding environments)
  • LFPAK gull-wing leads:
    • High board-level reliability absorbing mechanical stress during thermal cycling
    • Visual (AOI) soldering inspection
  • LFPAK copper clip technology:
    • Improved reliability, with reduced Rth, RDSon, and package inductance
    • Increases maximum current capability
    • Improved current spreading
  • EU RoHS-compliant

Applications

  • 12V automotive systems
  • Motor, lighting, and solenoid control
  • Ultra high-performance power switching

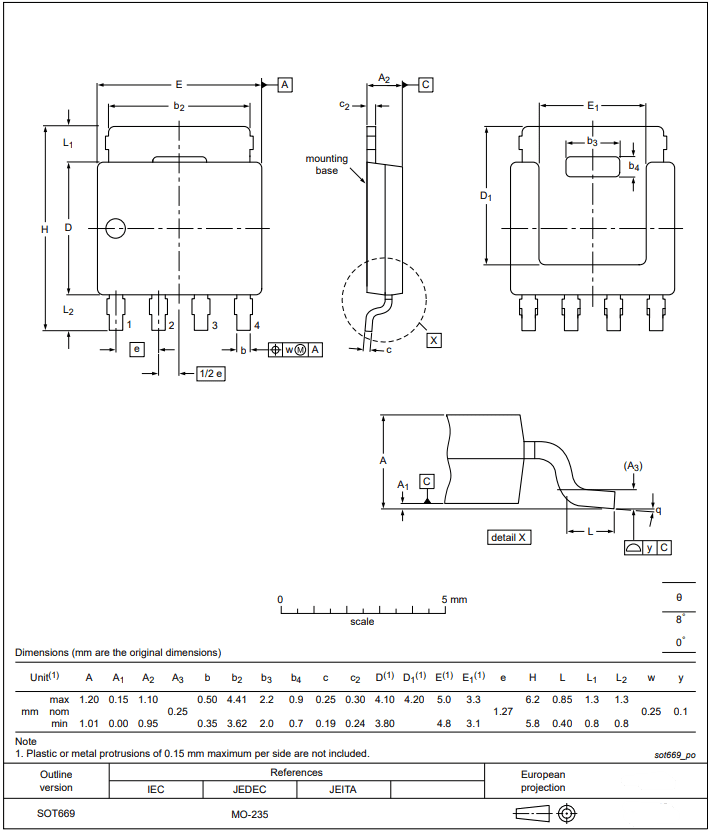

Package Outline

Mechanical Drawing - Nexperia BUK7Y1R0-40N & BUK7Y3R1-80M N-Channel MOSFETs
