Nexperia BAV99QB & BAV99QB-Q High-Speed Switching Diodes

Nexperia BAV99QB and BAV99QB-Q High-Speed Switching Diodes are ideal for applications requiring fast switching performance. The Nexperia BAV99QB and BAV99QB-Q diodes are in ultra-small DFN1110D-3 (SOT8015, JEDEC MO340-BA) surface-mounted device (SMD) plastic packages. The diodes feature visible and solderable side pads for easy installation. With a high switching speed of trr ≤ 4ns, low leakage current, and a reverse voltage of VR ≤ 90V, these diodes ensure efficient operation.

Features

  • trr ≤ 4ns high switching speed
  • Low leakage current
  • Reverse voltage VR ≤ 90V
  • Low capacitance Cd ≤ 2pF
  • Ultra small SMD plastic package
  • Low package height of 0.5mm
  • Suitable for Automatic Optical Inspection (AOI) of solder joint
  • Qualified according to AEC-Q101 and recommended for use in automotive applications (BAV99QB-Q)

Applications

  • High-speed switching
  • General-purpose switching
  • Reverse polarity protection

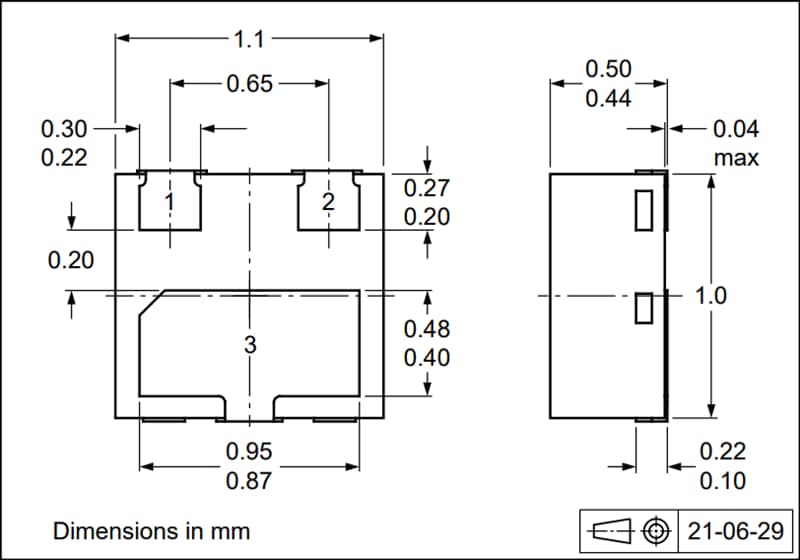

Package outline
