Newhaven Display 4.3″ EZ Grip IPS TFT Display

Newhaven Display 4.3″ EZ Grip IPS TFT Display delivers high-quality images and reliable performance with an integrated mounting interface for easy installation and sleek, seamless integration into applications. This 4.3″ display is equipped with In-Plane Switching (IPS) technology to allow for more accurate color on the screen from all viewing angles.

Features

EZ Grip Mounting
3″ IPS TFT
Built-in controller
High brightness LED backlight
800 x 480 resolution

Optically bonded capacitive touch panel with I²C interface
24-bit parallel RGB interface
High-brightness white LED backlight (850cd/m²)
Wide -20°C to +70°C operating temperature range
RoHS compliant

Applications

Human Machine Interface (HMI)
Medical and fitness equipment
Handheld devices

Small appliances
Test equipment
Kiosks and Point of Sale (PoS)

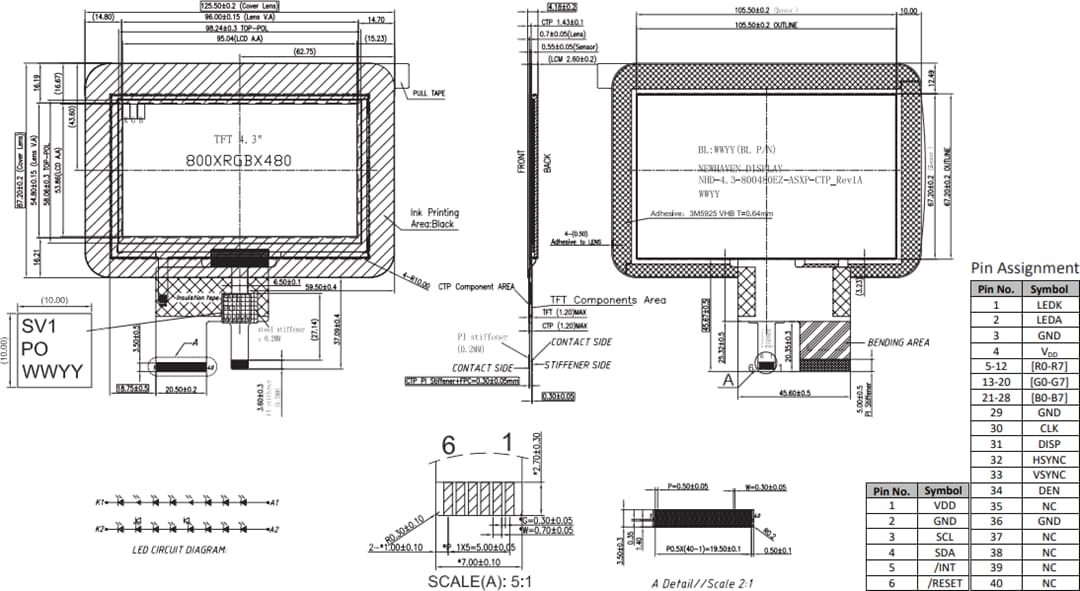

Dimensions & Pin Assignments

Mechanical Drawing - Newhaven Display 4.3
