New Age Enclosures Rugged Utility Enclosures

New Age Enclosures Rugged Utility Enclosures offer a 4.7″ x 3.6″ x 1.8″ package designed to withstand harsh environments. These rugged enclosures include an O-ring seal for resistance to water, oil, dirt, and dust. The impact-resistant case is constructed using high-strength, injection-molded UL 94V-0 HB, RoHS-compliant acrylonitrile styrene acrylate (ASA) plastic. These enclosures accommodate a 0.062″ thick PCB measuring 4.20″ x 2.60″. Tamper-resistant, zinc-plated assembly screws are included. New Age Enclosures Rugged Utility Enclosures are ideal for use in outdoor and industrial use environments.

Features

  • 4.7″ x 3.6″ x 1.8″ dimensions
  • Injection-molded black UL 94V-0 HB, RoHS-compliant ASA plastic
  • High strength and impact resistant
  • Accommodates 0.062″ thick PCB measuring 4.20″ x 2.60″
  • Designed to withstand harsh environments
  • O-ring seal resists water, oil, dirt, and dust, equivalent to IP67 rating
  • Tamper-resistant, zinc-plated assembly screws
  • Manufactured in the USA

Applications

  • Outdoor
  • Industrial

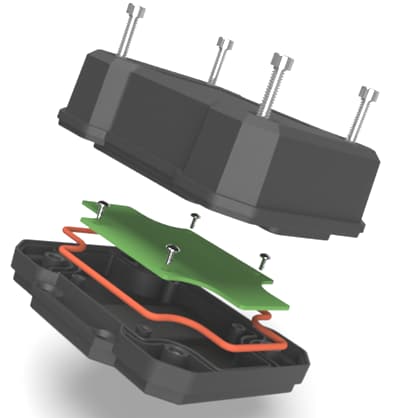

Exploded View
