New Age Enclosures Large Rugged Utility Enclosures

New Age Enclosures Large Rugged Utility Enclosures feature a 6.2″ x 3.7″ x 1.95″ package designed to withstand harsh environments. These impact-resistant enclosures include an O-ring seal for resistance to water, oil, dirt, and dust. The case is constructed using high-strength, injection-molded UL 94V-0 HB, RoHS-compliant acrylonitrile styrene acrylate (ASA) plastic. The enclosures accommodate a 0.062″ thick PCB measuring 5.70″ x 2.70″. Tamper-resistant, zinc-plated assembly screws are included. New Age Enclosures Large Rugged Utility Enclosures are ideal for use in outdoor and industrial use environments.

Features

  • 6.2″ x 3.7″ x 1.95″ dimensions
  • Injection-molded black UL 94V-0 HB, RoHS-compliant ASA plastic
  • High strength and impact resistant
  • Accommodates 0.062″ thick PCB measuring 5.70″ x 2.70″
  • Designed to withstand harsh environments
  • O-ring seal resists water, oil, dirt, and dust, equivalent to IP67 rating
  • Tamper-resistant, zinc-plated assembly screws
  • Manufactured in the USA

Applications

  • Outdoor
  • Industrial

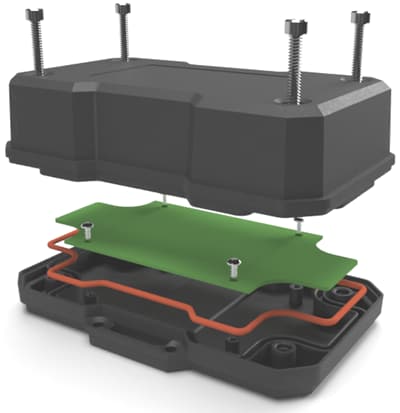

Exploded View

New Age Enclosures Large Rugged Utility Enclosures

New Age Enclosures Large Rugged Utility Enclosures
