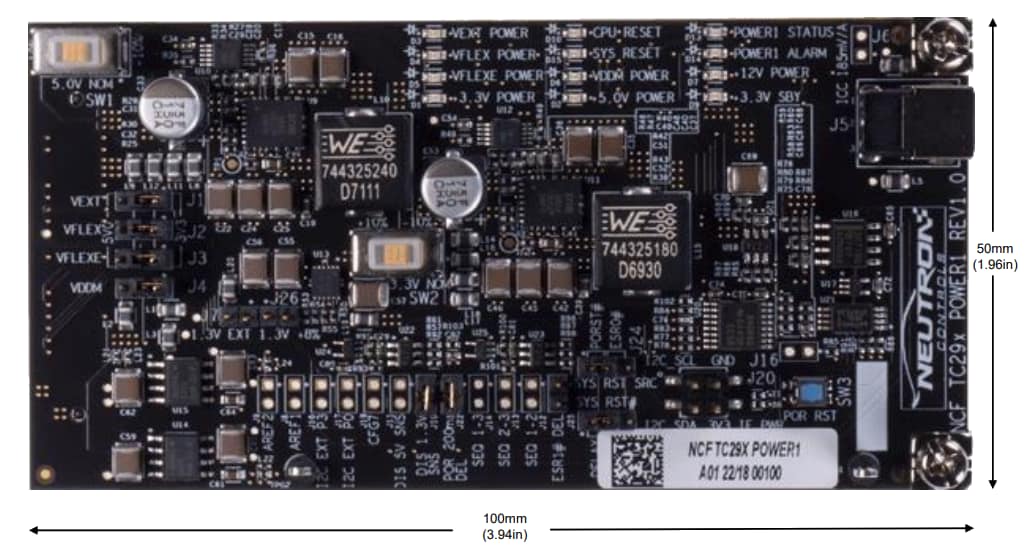

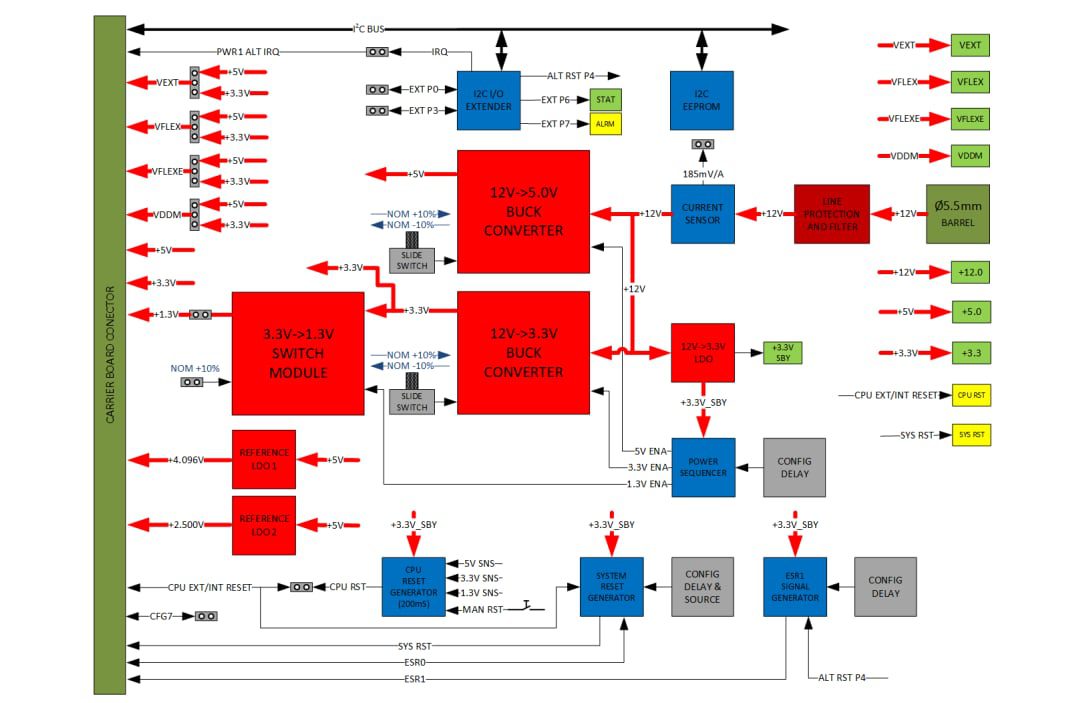

Neutron Controls Power Conversion Module is designed for the REDline™ Carrier Board and provides the necessary power rails to supply the AURIX™ MCU Platform Module as well as other peripheral Modules and devices. The Power Conversion Module sources +5V, +3.3V and +1.3V from an externally connected +12V power supply. The +5V and +3.3V rails have a selectable ±10% margining capability providing means for thermal and functional qualification.
The Neutron Controls Power Conversion Module offers two high-precision voltage sources allowing low-noise and very low drift references for all available AURIX ADC peripherals. Many options are available to configure the power rails’ sequencing, MCU and System reset delays, as well as reset sources. A separate circuit permits simulation of the ESR0 and ESR1 signals.
The Power Conversion Module features a complete hardware development support package including all schematics, BOM, layout, gerbers, PCB stack-up, and low EMI design rules.
