Neutron Controls Base Carrier Development Platform Kits

Neutron Controls Base Carrier Development Platform Kits feature a REDline™ Carrier board that interconnects the AURIX™ MCU Platform Modules to any number of peripheral modules servicing, dedicated and generic MCU functions. Two 200-position pad arrays on the Base Carrier Board provides connectivity between all MCU Platform Modules and peripheral connectors.

The Neutron Controls Base Carrier Development Platform Board allows 100% of the MCU functional connectivity to a particular peripheral module, including the most extensive 516-pin BGA package. Test points that are easily accessible and clearly marked allow hassle-free access to all of the routed signals. The test points are arranged on a grid permitting the use of press-fit headers when group signal probing is required. The Module Kits provide separated analog and digital domains implementing the MCU’s analog-to-digital converters.

The Base Carrier Development Platform Kits offer a complete hardware development support package including all schematics, BOM, layout, Gerbers, PCB stack-up, and high-speed signal design rules.

Features

400-position pad array with spring-leaf mounted interposers
14 dedicated peripheral connectors covering Ethernet, DuoComms 1/2, Camera, Digital/Analog I/O, 24G Radar, SoloComms, Motor Control 1/2, Power 1/2, EBU and HSSL
Reliable 1.27mm pitch dual row connectors serving high current and high-speed signal applications
Versatile External Bus Unit (EBU) slot allows for: SDRAM, SRAM, PSRAM, NOR flash and FPGA parallel bus prototyping
Real-time counter with battery back-up for uninterrupted time stamping and logging

Overcurrent protection on +12V supply to motor control 1/2 modules
Emergency shutdown simulation pushbutton with red LED arming indication
Twisted pair ribbon cable connection allowing flexible
Sensor and radar modules’ positioning and helping reduce EMI profile
“Status 1/2” and “Alarm” s/w controlled LED

Kit Contents

Base Carrier Platform, supports 15 interfaces to enable ADAS HW / SW development
AURIX TC2xx MCU Module, the part number will indicate the exact device
12V to 5V, 3.3V, 1.3V Interface module for power conversion
Power Adapter converts 120V to 12V included with power interface
Infineon mini wiggler

USB Adapter
Quick start guide for RDL kits
USB Flash drive with software image/documentation
Box and internal foam for SYSKITs
Label for SYSKIT TC2xx

Neutron Controls Base Carrier Development Platform Kits

Features

Kit Contents

Carrier Platform Overview

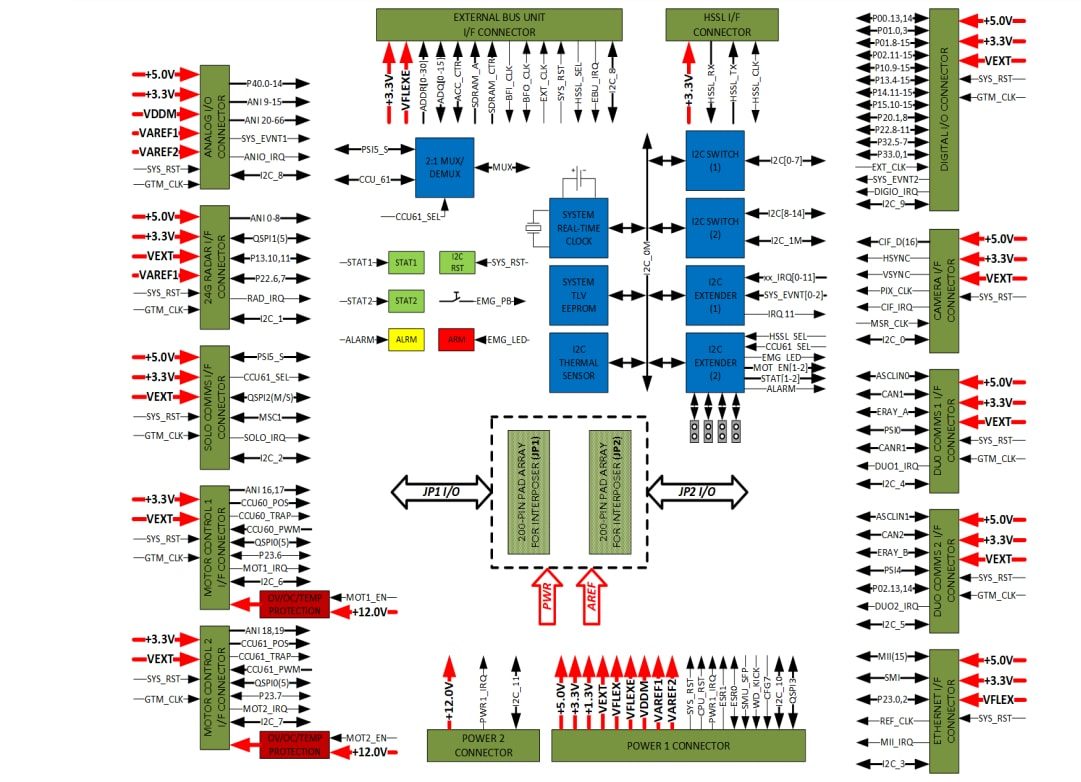

Block Diagram
