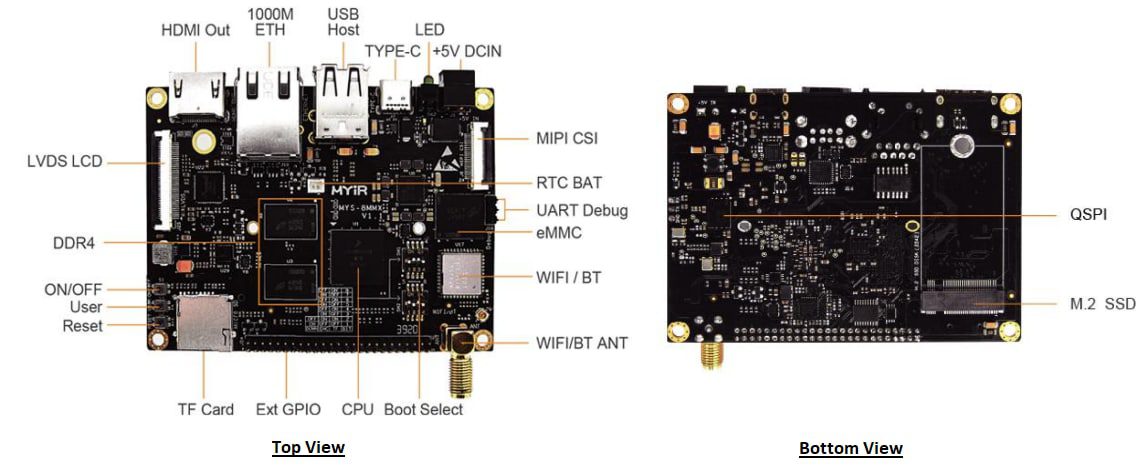

MYIR Tech MYS-8MMX Single Board Computers (SBCs) are powered by NXP’s first embedded multicore applications processor i.MX 8M Mini. This NXP i.MX 8M Mini quad processor features up to 1.6GHz/1.8GHz quad-core ARM® Cortex®-A53 plus 400MHz Cortex®-M4 processor. The processor also combines advanced 14LPC FinFET process technology to provide more speed and improved power efficiency. These MYS-8MMX SBCs equipped with 2GB DDR4, 8GB eMMC, and 32MB QSPI Flash. The SBCs support Gigabit Ethernet, 2.4G/5G dual-band Wi-Fi®, and BLUETOOTH® 5.0 communications. These MYS-8MMX boards are capable of running Linux operating system based on the Yocto 3.0 or Ubuntu 18.04.
The MYS-8MMX SBCs can be used as a System-on-Module (SOM) for the next embedded design. These SBCs can be used directly for system integration with created applications. The MYS-8MMX SBCs operate from -40°C to 85°C temperature range. These SBCs provide a low-power and high-performance solution for embedded applications in areas of consumer electronics, industrial automation, smart healthcare, security monitoring.

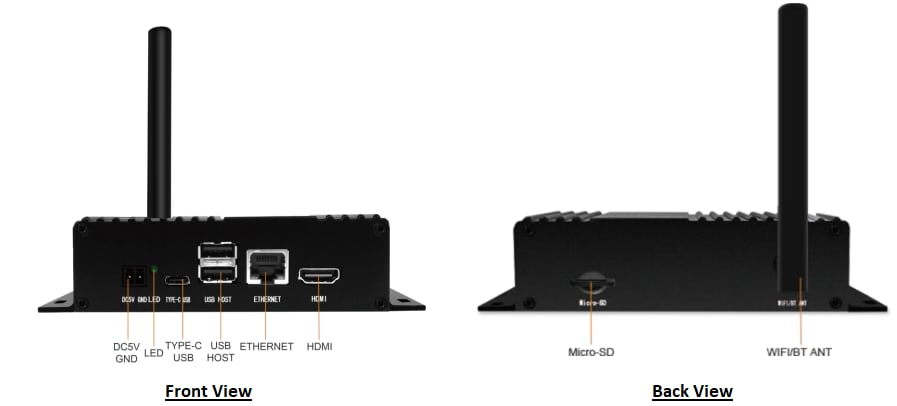

The MYS-8MMX Boxes provide a high-quality aluminum enclosure to house the MYS-8MMX single board computers. These MYS-8MMX boards are installed with a heat sink inside of the enclosure. The MYS-8MMX boxes effectively protect against external interference and give the product a more elegant appearance. This enables the product to be used in various industries and fields.
