Murata Electronics MRS Magnetic Sensors

Murata Electronics MRS Magnetic Sensors offer a 3.5V to 30V supply voltage range, 10KΩ load resistance, and -40°C to +80°C or +85°C temperature range. The Murata MRSS29DR-001 sensor provides a 1mA current consumption, while the MRSS29E sensor has a maximum 1.5µA current consumption rating.

Specifications

Current Consumption
- 1mA for MRSS29DR-001 sensor
- 1.5µA maximum rating for MRSS29E sensor
Operating Temperature Range
- -40°C to +80°C for MRSS29DR-001 sensor
- -40°C to +85°C for MRSS29E sensor

3.5V to 30V supply voltage rating
0.3V to 0.5V low level output voltage
11V to 11.4V high level output voltage

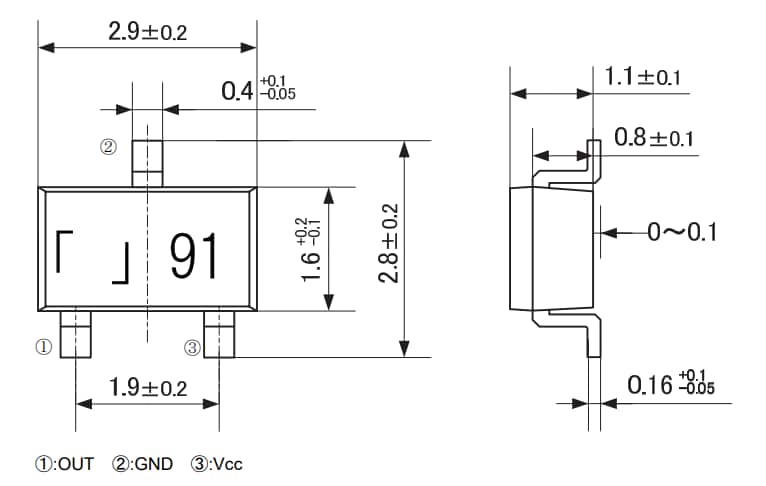

MRSS29DR-001 Dimensions & Schematics

Murata Electronics MRS Magnetic Sensors

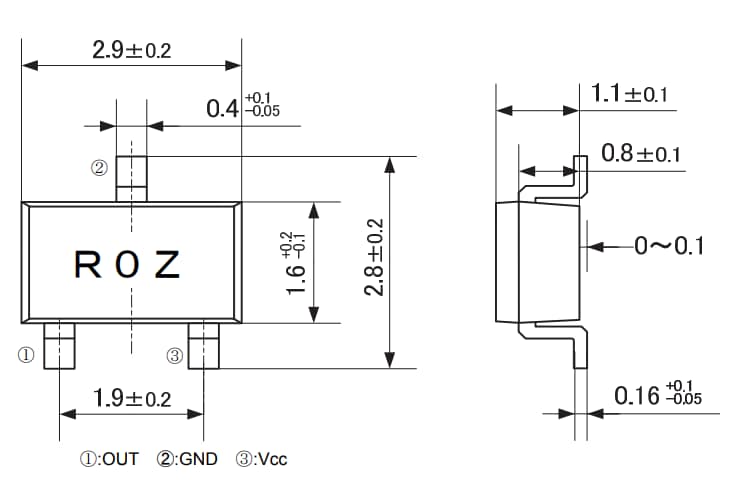

MRSS29E Dimensions & Schematics

Murata Electronics MRS Magnetic Sensors
