Murata DLW21SH Common Mode Chokes

Murata DLW21SH Common Mode Chokes are automotive-grade SMD modules with a single circuit, winding type structure, and 0805/2012 case size (2mm x 1.2mm). These noise suppression devices offer 280mA or 300mA rated current, 20V_DC rated voltage, and 67Ω to 390Ω ±25% common mode impedance (at 100MHz). The series operates in a -40°C to +125°C temperature range with derating over +105°C. Murata DLW21SH Common Mode Chokes are suitable for automotive applications such as powertrain/safety equipment, infotainment/comfort equipment, USB, HDMI, and low voltage differential signaling (LVDS), which is an interface used for LCD panels. The DLW21SH391XQ2L choke is also suitable for power over coax (PoC) for onboard cameras and other high-speed interfaces (SerDes).

Features

Both Series
- Automotive grade
- Winding type structure
- SMD
- Single circuit
DLW21SH_XQ2 Series
- Compatible with large currents (300mA to 500mA)
- Suitable for PoC for onboard cameras and other high-speed interfaces (SerDes)

DLW21SH_HQ2 Series
- Ultra-high self-resonance frequency enables high cut-off frequency
- Matching to characteristic impedance enables good transmission of high-speed signals

Applications

Automotive powertrain/safety equipment
Automotive infotainment/comfort equipment
Consumer equipment
Medical

LVDS
USB 2.0, HDMI 1.4b, HDMI 2.0, USB 3.1 Gen 2 (DLW21SH900HQ2L)
PoC (DLW21SH391XQ2L)

Specifications

0805/2012 case size (2mm x 1.2mm)
280mA or 300mA rated current
67Ω to 390Ω ±25% common mode impedance (at 100MHz)
20V_DC rated voltage
10MΩ minimum insulation resistance
5B ESD rank

DC resistance
- 0.24Ω ±30% (DLW21SH670HQ2L)
- 0.32Ω ±30% (DLW21SH900HQ2L and DLW21SH121HQ2L)
- 0.30Ω ±20% (DLW21SH391XQ2L)
-40°C to +125°C temperature range (derating over +105°C)

Murata DLW21SH Common Mode Chokes

Features

Applications

Specifications

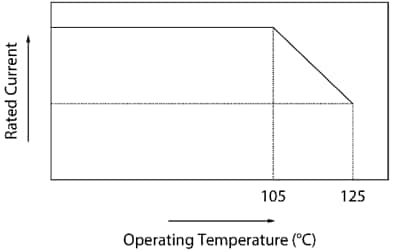

Derating Curve

Equivalent Circuit

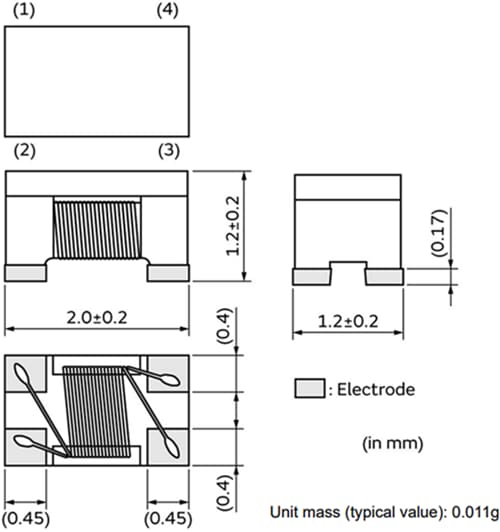

Dimensions
