Murata DFE2MCPH_JL Automotive-Grade Power Inductors

Murata DFE2MCPH_JL Automotive-Grade Power Inductors feature 0.33µH and 0.47µH inductance values and are specifically designed for automotive powertrain / safety equipment. These chip inductors come in a compact 0806 (2016) size with 18mΩ or 22mΩ maximum DC resistance and 4400mA or 5100mA maximum rated current based on temperature rise. The maximum rated current increases to 5400mA or 6900mA based on inductance change. These AEC-Q200-conforming modules operate in a -40°C to +155°C temperature range (including self-temperature rise). Murata DFE2MCPH_JL Automotive-Grade Power Inductors combine high quality and performance in a metal alloy design. Applications include automotive, consumer, industrial, and medical equipment.

Features

Metal alloy inductors
Miniature package saves space and material usage
Capable of handling large currents

High withstand voltage type
Combines high quality and performance
AEC-Q200-conforming products

Applications

Automotive powertrain / safety equipment
Automotive infotainment / comfort equipment

Consumer equipment
Industrial and medical [GHTF A/B/C] equipment

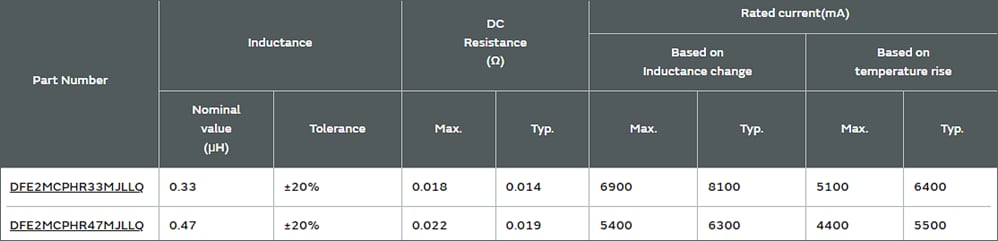

Specifications

0806 (2016) size code
2mm x 1.6mm x 1.2mm dimensions
0.33µH and 0.47µH nominal inductance value
±20% inductance tolerance
18mΩ or 22mΩ maximum DC resistance

Maximum rated current
- 5400mA or 6900mA based on inductance change
- 4400mA or 5100mA based on temperature rise
-40°C to +155°C operating temperature range (includes self-temperature rise)

Murata DFE2MCPH_JL Automotive-Grade Power Inductors

Features

Applications

Specifications

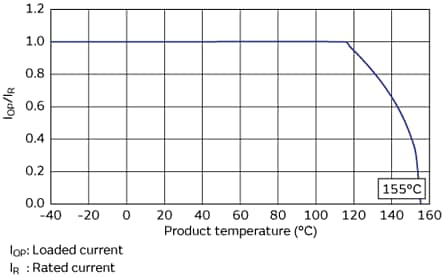

Derating Curve

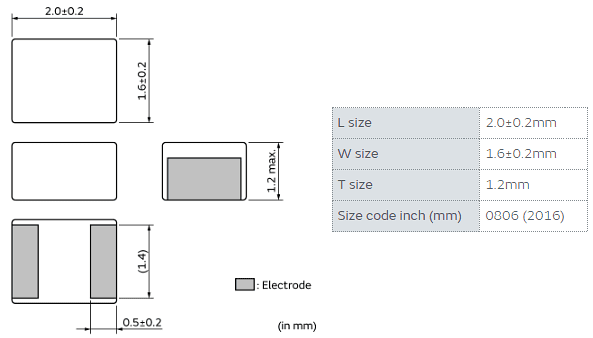

Dimensions

Product Overview
