MultiTech MultiConnect® eCell Cellular to Ethernet Bridge

MultiTech MultiConnect® eCell Cellular to Ethernet Bridge quickly and easily adds cellular connectivity to existing wired assets. The MultiConnect eCell Cellular is ideal for providing vending machines, kiosks, digital signs, ATMs, and countless other fixed assets with reliable, always-on connectivity. The device is enclosed in a rugged, aluminum chassis suitable for even extreme environments. And, with FCC, IC, CE, PTCRB, and carrier certifications, the MultiConnect eCell reduces time to market and cost.

The MultiTech MultiConnect eCell Cellular to Ethernet Bridge is available for 4G-LTE Cat 4 (MTE Series) and Private LTE OnGo CBRS Cat 12 Networks (MTE2 Series).

Features

Connectivity
- MTE Series
  - 4G-LTE with 3G HSPA+ fallback for AT&T networks
  - 4G-LTE with 3G HSPA+ and 2G fallback for EU/GB/AU networks
- MTE2 Series
  - LTE Category 12

Certified and carrier approved
1 Ethernet LAN port
Reset push button
Aluminum chassis
Long and stable lifecycles
Remotely-hosted device management platform

Applications

Kiosks
Vending machines
Energy
Digital signage

Retail
Healthcare
Game consoles
ATMs and POS

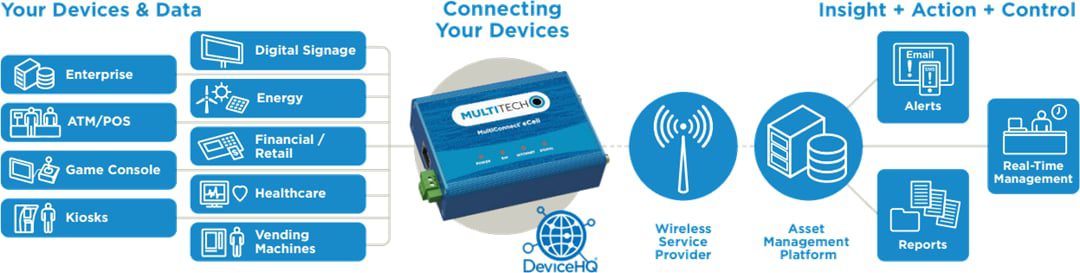

Application Examples

MultiTech MultiConnect® eCell Cellular to Ethernet Bridge

Resources

MTE Series Datasheet
Quick Start Guide

MTE2 Series Datasheet
User Guide

Specifications

Frequency bands
- MTE-LAT6 – LTE Cat. 4 – North America
  - 4G: B2 (1900MHz), B4 (AWS 1700MHz), B12 (700MHz)
  - 3G: B2 (1900MHz), B4 (1700MHz), B5 (850Mhz)
- MTE-LEU6 – LTE Cat. 4 – EU/GB/AU
  - 4G FDD: B1 (2100MHz), B3 (1800MHz), B7 (2600MHz), B8 (900MHz), B20 (800MHz), B28A (700MHz)
    4G TDD: B38 (2600MHz), B40 (2300MHz), B41 (2500MHz)
    3G: B1 (2100MHz), B5 (850MHz), B8 (900Mhz)
    2G: B3 (1800Mhz), B8 (900MHz)
- MTE2: CBRS B42, B43, B48 (3.5GHz)
Packet data
- MTE
  - Up to 150Mbps downlink
  - Up to 50Mbps uplink
- MTE2
  - Up to 600Mbps downlink
  - Up to 150Mbps uplink
Connectors
- Cellular
  - MTE: 50Ω SMA
  - MTE2: 2x 50Ω SMA
- SIM: Mini-SIM 2FF
- LAN
  - MTE: RJ-45, 10/100 BaseT
  - MTE2: RJ-45, 10/100/1000 BaseT

Physical
- Dimensions
  - MTE: 81.2mm x 63.5mm x 30.5mm; 0.45Kg
  - MTE2: 95.0mm x 70.0mm x 30.5mm; 0.54Kg
- Chassis: Aluminum
- Operating temperature
  - MTE: -30°C to +60°C
  - MTE2: -30°C to +70°C
- Storage temperature: -40°C to +85°C
- Relative Humidity
  - Operating: 10% to 85% non-condensing
  - Storage: 5% to 90%
Certifications
- MTE-LAT6
  - Regulatory compliance
    - US: FCC Class B
    - Canada: IC
  - Network
    - PTCRB, AT&T
- MTE-LEU6
  - Regulatory compliance
    - CE RED
    - AU RCM
- MTE2: OnGo FCC Part 96 CBRS, FCC Part 15

MultiTech MultiConnect® eCell Cellular to Ethernet Bridge

Features

Applications

Application Examples

Resources

Specifications

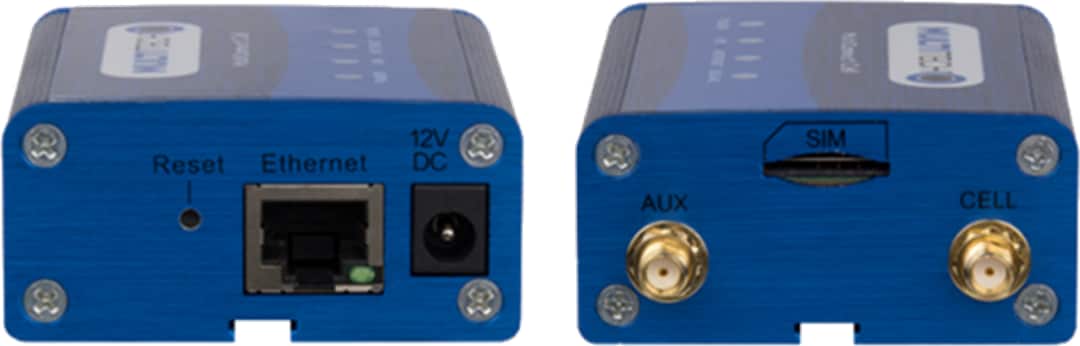

MTE Side Panels
