Move-X Cicerone LoRa®/GNSS Board

Move-X Cicerone LoRa®/GNSS Board is a high-performance, low-power, Arduino MKR-compatible development board based on the MAMWLE LoRa Module and the u-blox MAX-M10S GNSS Module. The Cicerone Board delivers best-in-class GNSS, long-range wireless connection, and high-performance MCU processing in a low-power solution for optimal battery life.

TheCicerone Board allows users to build tracking applications worldwide with meter-level accuracy and to communicate long-range, low-power data via LoRaWAN®. The integrated Li-Po charging circuit enables the Cicerone Board to manage battery charging through the USB port.

The Move-X Cicerone LoRa/GNSS Board features a compact 63mm x 25mm form factor and is compatible with all Arduino MKR Shield Boards. These boards all share a common pinout to enable developers to easily add expansions with minimal software changes.

Features

63mm x 25mm PCB
2x push buttons: Reset, User)
2x LEDs: Battery charging status (Red), User (Green)
Headers compatible with Arduino MKR pinout
- SWD signals for debugging
- RESET, BOOT0
- +3.3V output (LDO)
- +5V input
- +5V output (internally MUXed between USB and +5V input)
- VREF output
- GNSS module’s UART (allows firmware update)
- MAMWLE SPI
- I²C shared by LoRa and GNSS module
- Up to 22 digital GPIO
- Inputs for ADC
- PWM outputs

Interfaces
- USB micro for UART, RESET/BOOT0 driver, supply input, battery charge @200mA
- Connector for single-cell 3.7V Li-Po battery (battery shall include protection circuitry against SC, OD, OC)
- 10-pin JTAG/SWD Debug connector for ST-LINK
- U.FL antenna connector for GNSS L1
- U.FL antenna for LoRaWAN®
Key components
- Move-X MAMWLE Low Power Radio Module
- u-blox MAX-M10S GNSS Module
- Microchip Technology MCP73831 Charge Management Controller
- Silicon Labs CP2102N USBXpress™ USB-to-UART Bridge Controller

Applications

Smart meters
Supply chain and logistics
Building automation
Agricultural sensors
Smart cities
Retail store sensors
Asset tracking

Street lights
Parking sensors
Environmental sensors
Healthcare
Safety and security sensors
Remote control applications

Move-X Cicerone LoRa®/GNSS Board

Features

Applications

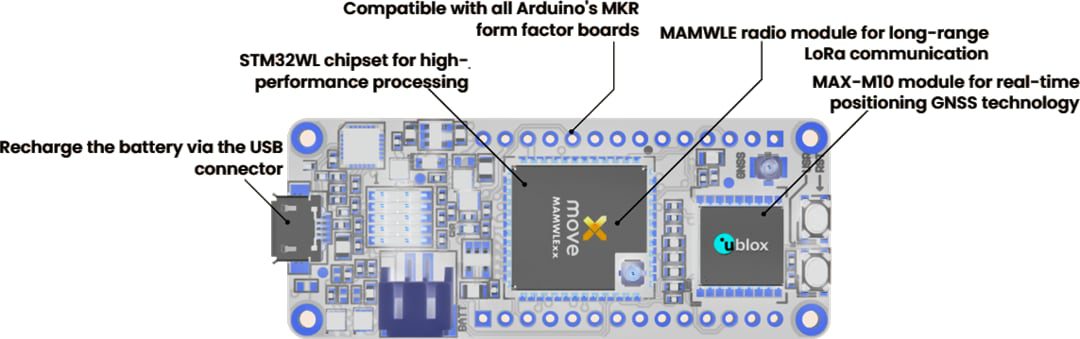

Board Layout
